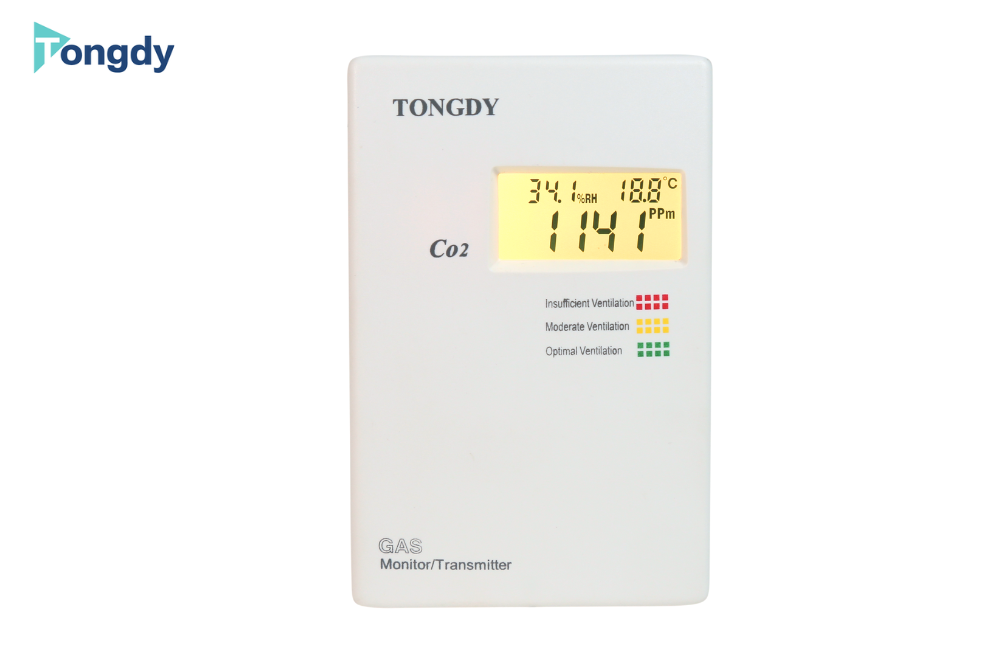

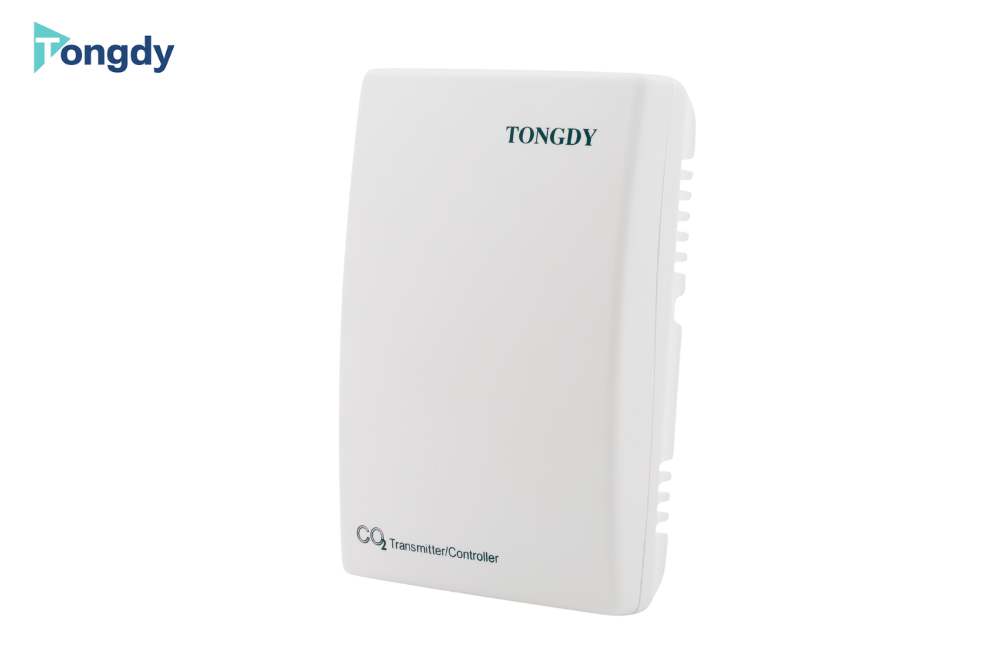

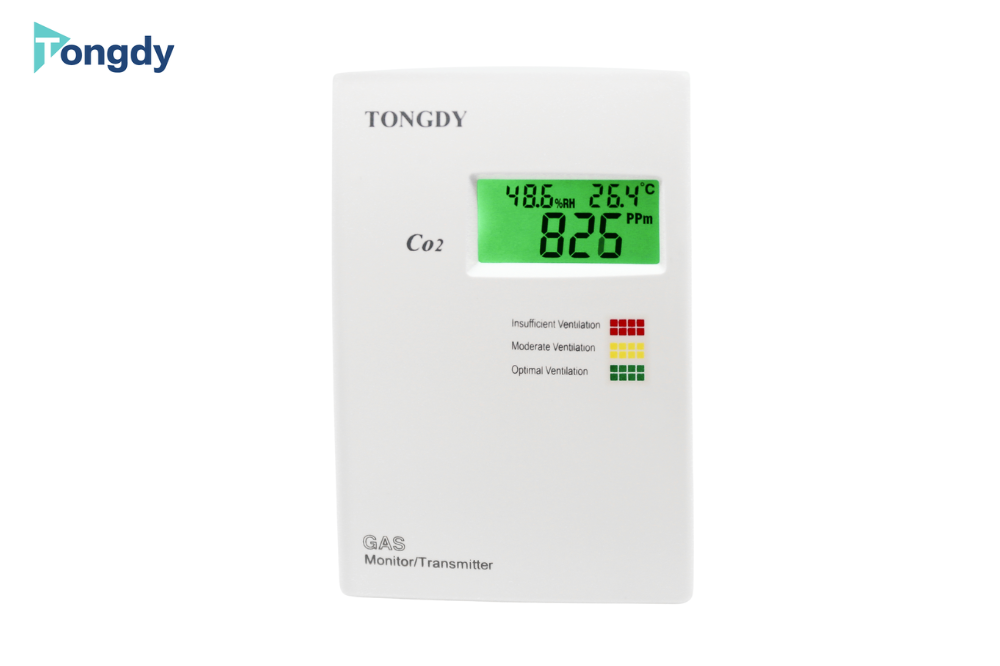

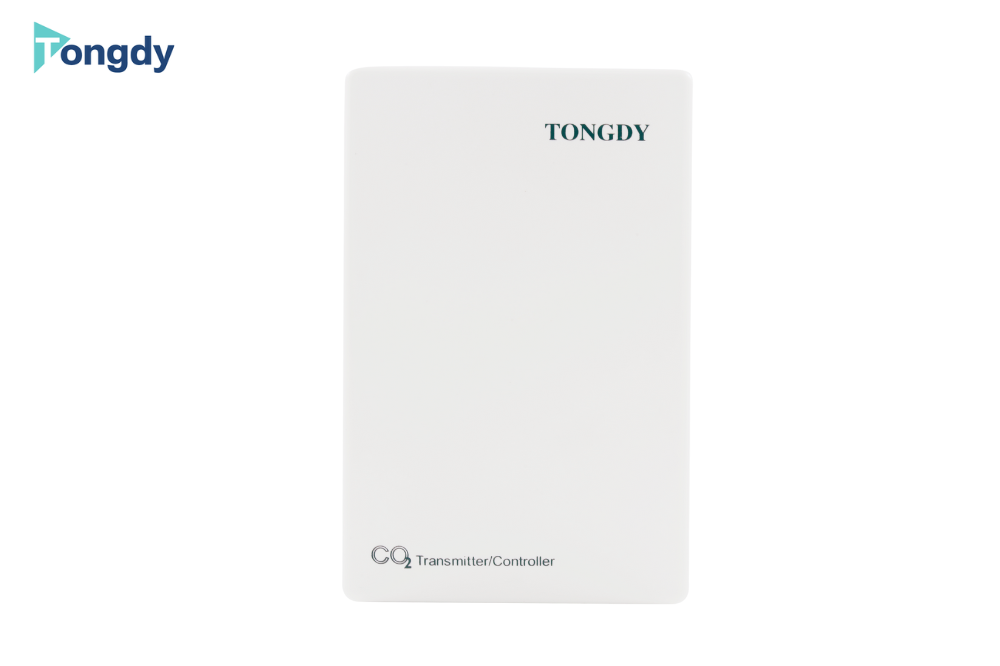

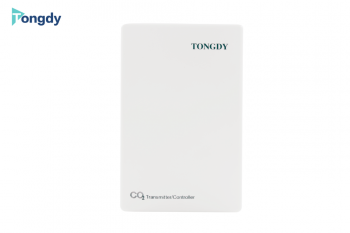

CO2 Sensor in Temperature and Humidity Option Model: G01-CO2-B10C/30C Series

สินค้า

CO2 Sensor in Temperature and Humidity Option Model: G01-CO2-B10C/30C Series

ชื่อสินค้า : CO2 Sensor in Temperature and Humidity Option Model: G01-CO2-B10C/30C Series

รหัส : Model: G01-CO2-B10C/30C Series

แบรนด์ : Tongdy

ไฟล์เอกสาร :

รายละเอียด :

Design for real time measuring ambiance carbon dioxide level and temperature +RH%

Combined both humidity and temperature sensors seamlessly with the digital auto compensation
Provide up to three analog linear outputs for measurements
LCD is optional to display CO2 and temperature &RH measurements
Optional Modbus communication
The end user can adjust CO2/Temp. range which correspond with the analog outputs Via Modbus, also can preset the direct proportion or inverse proportion for different applications
24VAC/VDC power supply
EU standard and CE-approval

Power supply	100~240VAC or 10~24VACIVDC
Consumption	1.8 W max. ; 1.2 W avg.
Analog outputs	1~3 X analog outputs 0~10VDC(default) or 4~20mA (selectable by jumpers) 0~5VDC (selected at placing the order)
Rs485 communication (optional)	RS-485 with Modbus RTU protocol, 19200bps rate, 15KVantistatic protection, independent base address.
Operation conditions	0~50℃(32~122℉); 0~95%RH, non condensing
Storage conditions	10~50℃(50~122℉), 20~60%RH non condensing
Net Weight	240g
Dimensions	130mm(H)×85mm(W)×36.5mm(D)
Installation	wall mounting with 65mm×65mm or 2”×4”wire box
Housing and IP class	PC/ABS fireproof plastic material, protection class: IP30
Standard	CE-Approval
CO2 measuring range	0~2000ppm/ 0～5,000ppm optional
