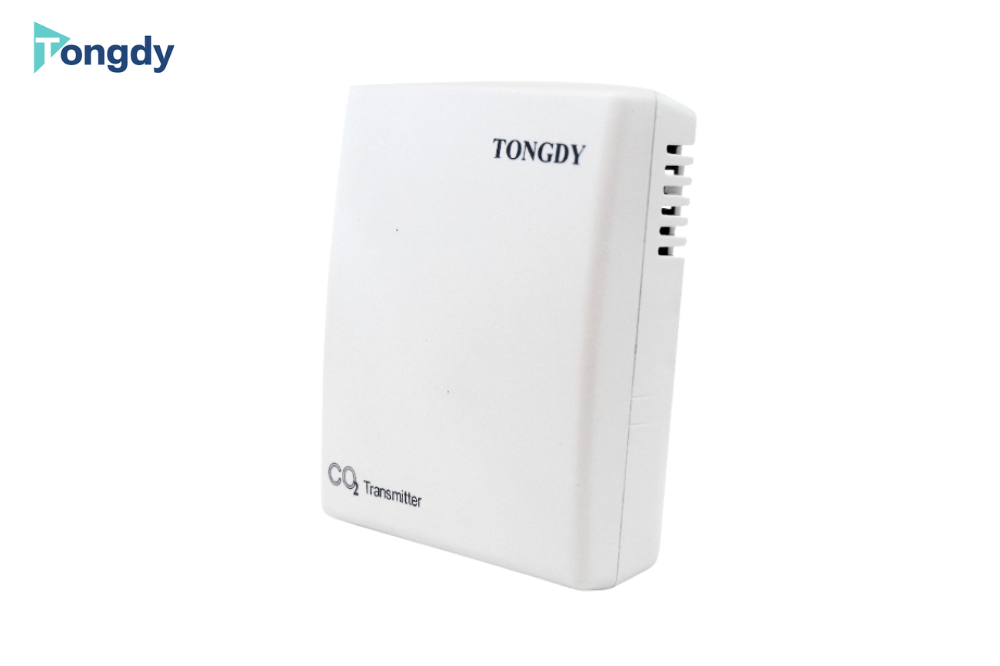

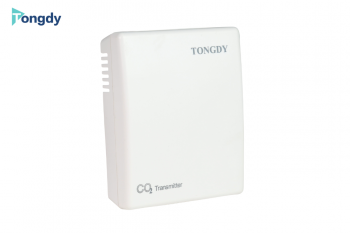

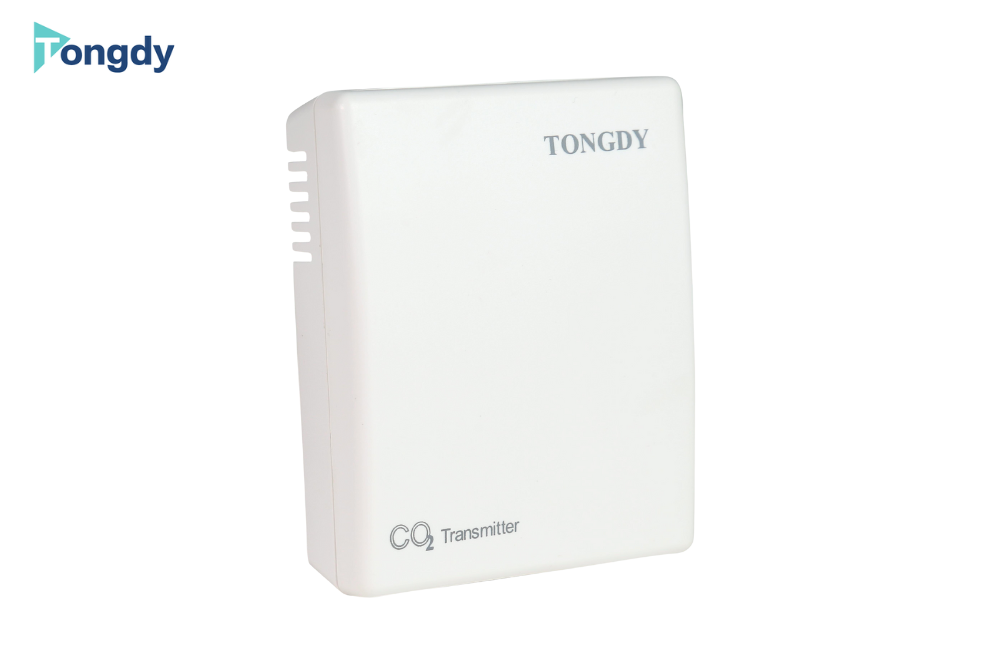

Carbon Dioxide Sensor NDIR Model: F2000TSM-CO2 Series

ชื่อสินค้า : Carbon Dioxide Sensor NDIR Model: F2000TSM-CO2 Series

รหัส : Model: F2000TSM-CO2 Series

แบรนด์ : Tongdy

ไฟล์เอกสาร :

Download

รายละเอียด :

FEATURES

Real-time detecting CO2 level.
NDIR infrared CO2 module inside with four CO2 detection range selectable.
CO2 sensor has Self-Calibration Algorithm and 15 years lifetime
Wall-mounting
Providing one analog output with voltage or current selectable
0~10VDC/4~20mA selectable easily via jumpers
Special “L” series with 6 lights indicates CO2 level and makes CO2 level show clearly.
Design for HVAC, ventilation systems, offices, or other public places.
Modbus RS485 communication interface optional: 15KV antistatic protection, independent address setting
CE-Approva

TECHNICAL SPECIFICATIONS

Gas detected	Carbon Dioxide (CO2)
Sensing element	Non-Dispersive Infrared Detector (NDIR)
Accuracy@25℃(77℉),2000ppm	±40ppm + 3% of reading or ±75ppm (whichever is greater)
Stability	<2% of FS over life of sensor (15 yr typical)
Calibration interval	ABC Logic Self Calibration System
Response time
Warm up time	2 hours (first time)/2 minutes (operation)
CO2 measuring range	0～2,000ppm / 0～5,000ppm selectable in orders 0～20,000ppm / 0～50,000ppm just for TSM-CO2-S series
Sensor life	Up to 15 years
Power supply	24VAC/24VDC
Consumption	1.5 W max. ; 0.8 W avg.
Analog outputs	0~10VAC or 4~20mA selectable by jumpers
Relay output	1X2A switch loadFour set points selectable by jumpers

6 LED lights(just for TSM-CO2-L series) From left to right:Green/Green/Yellow/Yellow/Red/Red	1^st green light on as CO2 measurement≤600ppm, 1^st and 2^nd green lights on as CO2 measurement>600ppm and≤800ppm, 1^st yellow light on as CO2 measurement>800ppm and≤1,200ppm, 1^st and 2^nd yellow lights on as CO2 measurement>1,200ppm and≤1,400ppm, 1^st red light on as CO2 measurement>1,400ppm and≤1,600ppm, 1^st and 2^nd red lights on as CO2 measurement>1,600ppm.
Modbus interface	Modbus RS485 interface9600/14400/19200(default)/28800 or 38400bps (programmable selection), 15KV antistatic protection.
Operation conditions	0~50℃(32~122℉); 0~95%RH, non condensing
Storage conditions	0~50℃(32~122℉)
Net weight	180g
Dimensions	100mm×80mm×28mm
Installation standard	65mm×65mm or 2”×4”wire box
Approval	CE-Approval
