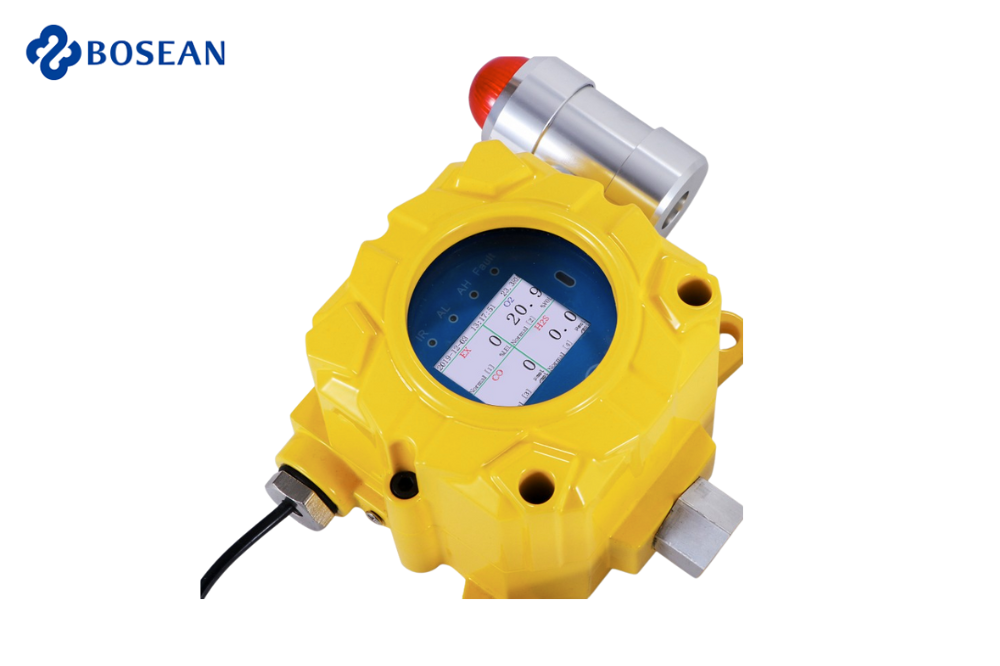

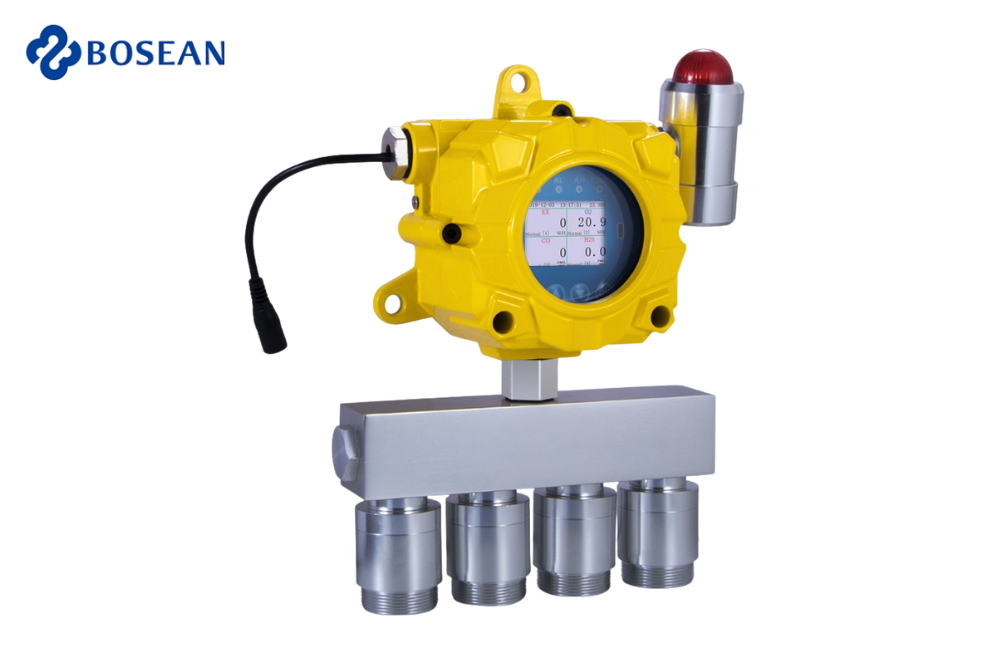

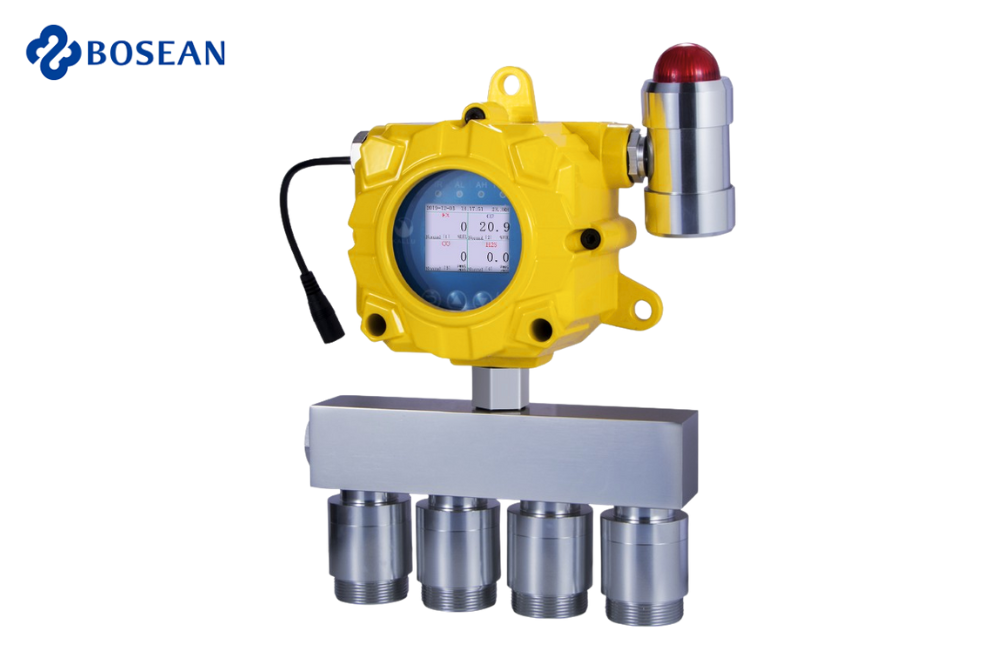

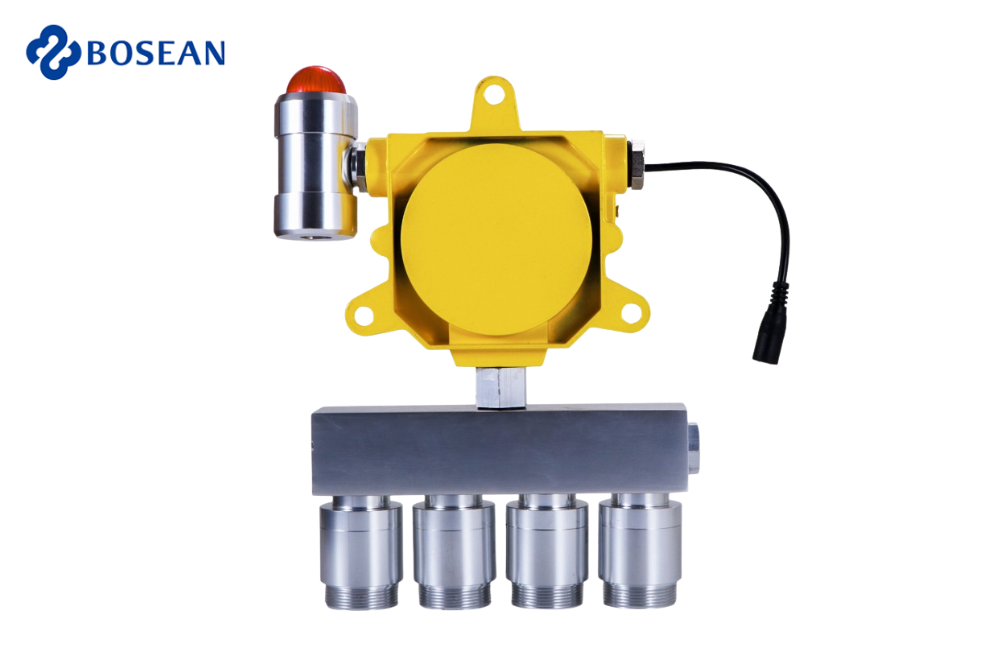

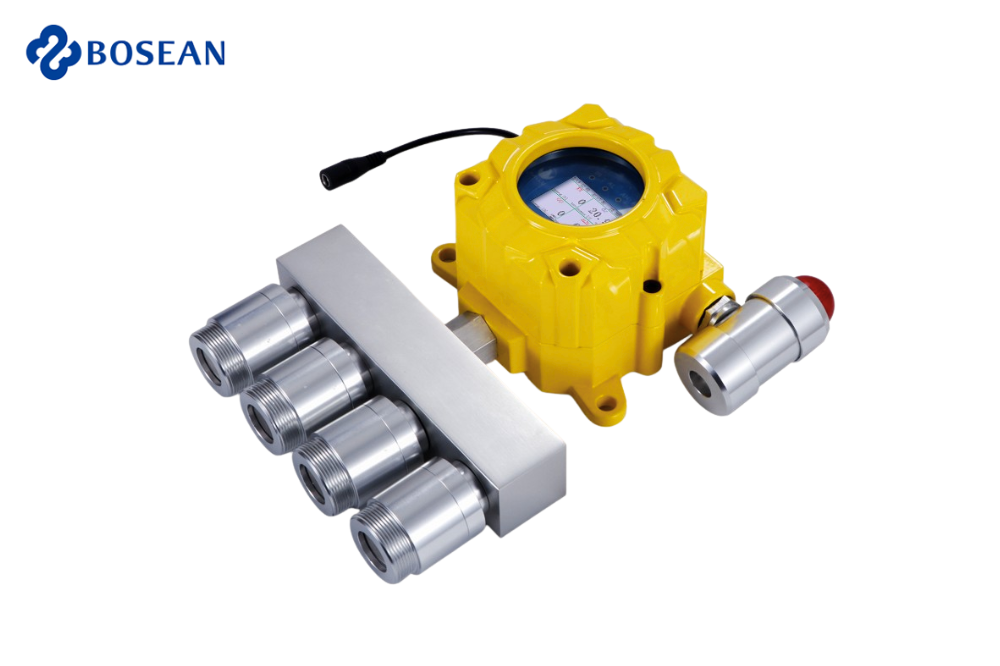

K-G60-S4 Fixed Gas Detector

Multi 4in1 fixed gas detector, can detect EX,O2,CO,H2S (support other gas combinations),have ATEX, CE, FCC, ROHS, SIL certification.

INTRODUCTION

With all advantages: accurate, strong, easy to operate, safe！

*Specially made shell,Authority certified

Thickened shell, encrypted screw port, special alloy material, national professional organization certification, sealed off any fire source, waterproof, dustproof and explosion-proof performance, overall indestructible, and super high corrosion resistance in harsh environments.

*Powerful

High-efficiency ultra-optimized computing system, coupled with cutting-edge semiconductor nano ultra-low power 32-bit microprocessor and 24-bit ADC data acquisition chip, Seiko Heart creates a new standard of reliability and durability, giving you a new stability experience.

*High-quality industrial grade sensors

Superior sensors are the key to K-G60-S4's data accuracy and long life. Every sensor must go through supplier selection, sensor model selection, market reputation inspection, storage quality inspection, workshop testing and other layers before entering the production line. Levels to ensure their quality.

*Standard RS485 output is widely compatible

Standard MODBUS RTU protocol is standard, which is generally compatible with the popular gas alarm control equipment on the market, and the signal transmission distance is up to 1 km. The installation and wiring are simple and the operation range is large, flexible and convenient.

*Real-time data on-site display

2.0-inch high-definition backlight multi-parameter display screen is selected, and the real-time concentration of each gas can be checked at any time on the spot.

*Different alarming method, keeping security

all four kinds of measured gases can be set with two different warning alarm levels: high and low, making two safety levels guarantee for the site

SPECIFICATIONS

Gas type	EX	O2	CO	H2S
Range	0-100%LEL	0-30%vol	0-1000ppm	0-100ppm
Resolution	1%LEL	0.1%vol	1PPM	1PPM
Sensor type	support electri-chemical, Catalytic ,semi-conductor, PID, infrared sensors
Detection method	diffusion, pump
Installation	wall mounted, pipe line (Thread size: G1/2)
Working voltage	DC(24+-3.6)V power: 1.6W
Response time	≦30s (T90)
Deviation	±3%FS
Repetition	≦2%
Relay	two relay output, free contact: 30VDC 1A/125VAC 0.3A
Degree of protection	IP65
Explosion-Proof	Ex d II T6 GB
Shell material	Die-casting aluminumExplosion-proof and anti-corrosion
Thread size	M20X1.5 , G1/2
Dimension	26117790mm cable: ＞4x1.5mm2 shielded cable
Working temperature	-10℃-50℃
Working humidity	≦95% RH, no condensation
Working pressure	86-106Kpa
