Multi-in-one Gas Sensor

สินค้า

Multi-in-one Gas Sensor

ชื่อสินค้า : Multi-in-one Gas Sensor

รหัส : RK300-08

แบรนด์ : RIKA

ไฟล์เอกสาร :

Download

รายละเอียด :

Overview

RK300-08 Multi-in-one Gas Sensor adopts high-precision chip for data acquisition, advanced technology of manufacturing technique and surface mount, which to ensure accurate and reliable measurement data. It has outstanding characteristics in measurement accuracy, linearity, repeatability, interoperability, consistency and other aspects. It is suitable for environmental equipment matching，integration, and most of the general environmental tests.RK300-08 with complete monitoring parameters and accurate data. The parameters can be customized according to the requirements, up to 5-6 parameters, including air temperature, air humidity, CO concentration, CO concentration, PM1.0/2.5/10, atmospheric 2 pressure, formaldehyde, oxygen, ozone, volatile organic compounds, etc.

Features

High sensitivity
Fast response
Effective resistance to water vapor
Excellent stability
Long service life

SPECIFICATIONS

Item	Range	Resolution	Accuracy
Temperature	-30℃~70℃	0.1℃	±0.3℃
Humidity	0~100%RH	0.1%RH	±3%RH
Illuminance	0~200K Lux	10Lux	±5%
Dew point temperature	-100℃~40℃	0.1℃	±0.3℃
Air pressure	300~1100hPa	0.1hPa	±1hPa
CO2	0~5000ppm	1ppm	±50ppm＋3%FS
PM1.0/2.5/10	0~1000μg/m3	1μg/m3	±10%FS
TSP	0~30mg/m3	1μg/m3	±15%FS
Standard Gas Sensor
CO	0~1000ppm	1ppm	±5%FS
SO2	0~20ppm	0.01ppm	±3%FS
O3	0~20ppm	0.01ppm	±3%FS
NO2	0~20ppm	0.01ppm	±3%FS
H2S	0~100ppm	0.01ppm	±3%FS
NH3	0~100ppm	0.01ppm	±3%FS
TVOC	0~10ppm	0.001ppm	±3%FS
CH2O	0~10ppm	0.01ppm	±3%FS
CH4	0-100%LEL	0.1%LEL	±5%FS
O2	0~30%VOL	0.1%VOL	±3%FS
NO	0~250ppm	0.01ppm	±3%FS
Odour	0~50ppm	0.01ppm	±3%FS
High-Precision Gas Sensor
CO	0~50ppm	0.001ppm	±3%FS
SO2	0~10ppm	0.001ppm	±2%FS
O3	0~10ppm	0.001ppm	±2%FS
NO2	0~10ppm	0.001ppm	±2%FS
H2S	0~10ppm	0.001ppm	±2%FS
NH3	0~10ppm	0.001ppm	±2%FS
Supply	12-24VDC
Output	RS485
Warm up time	3min
Response time	<1s
Stability	<±1%FS
Repeatability	<±2%FS
Operating temperature	-20℃-+60℃@15-80%RH
Storage	-40-70℃@20%-90%RH
Shell material	ABS

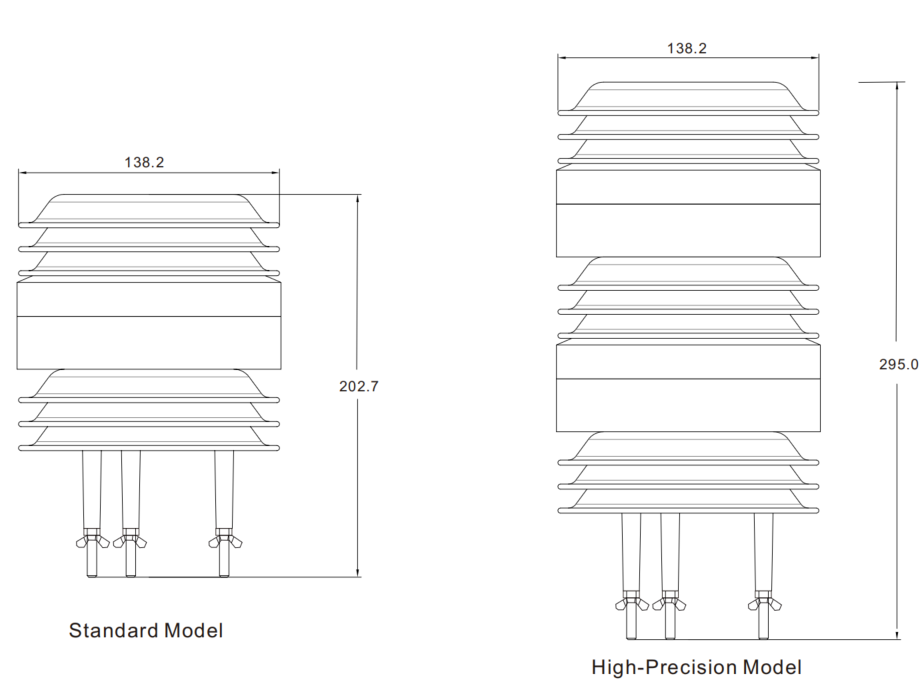

Dimension

Unit:mm
