ชื่อสินค้า : Tilt Sensor รหัส : RK700-01 แบรนด์ : RIKA ไฟล์เอกสาร :

Download

รายละเอียด :

Overview

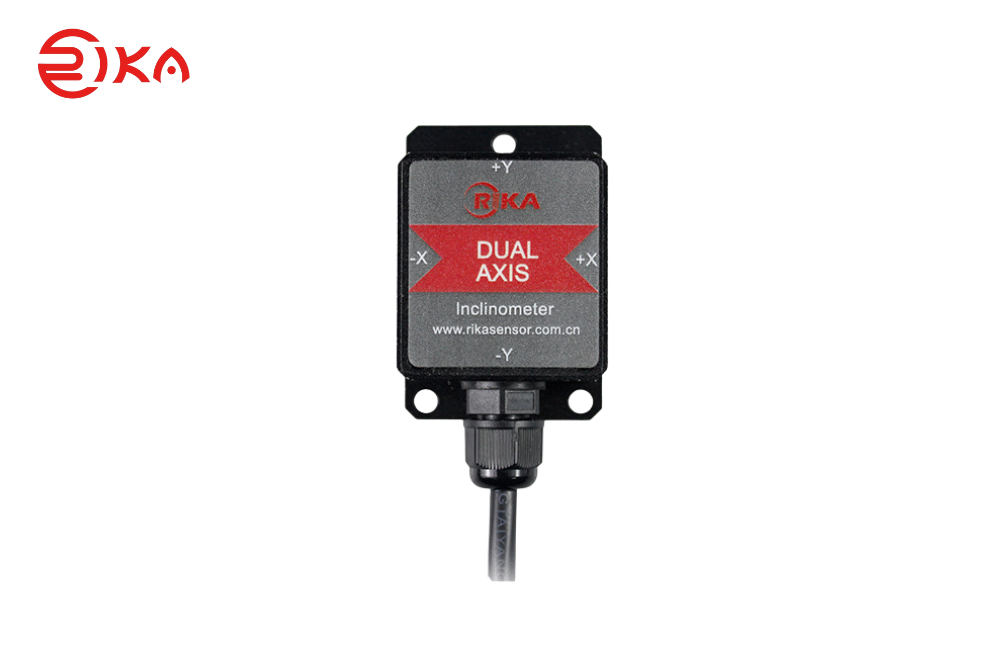

RK700-01 is a thew generation of digital small-volume micro-electro-mechanical tit sensor. It has a
dual-channel gravitational tit unit, which converts the static gravitational aceleration into the tit change, so that the tit and pitch angle of the sensor relative the horizontal plane can be measured. The product adopts secondary correction technology, which has high measurement accuracy.
This product uses non-contact measurement of the original quantity, can out the current attitude angle in real time, and is simple to use. It is an ideal choice for industrial automation control and platform atude measurement. It has strong ablity to resist external electromagnetic interfence and can adapt to long-tem work in harsh industral environment. This product is mainly suitable for dynamic measurement of static and slow changes, but not for dynamic measurement of rapid changes.

FEATURES

• Dual-Axis Inclinometer
• Long-term stability 0.2°
• Strong corrosion resistant ability
• Highly anti-vibration performance >3500g
• IP67 protection class
• Resolution: 0.1*
• Output RS232/RS485/TTL (optional)

APPLICATIONS

• Cloud deck operating monitor
• Satellite antenna positioning
• Medical equipment leveling
• Car Chassis Measurement
• Four - wheeled positioning system
• Engineering mechanical measurement of dip angle

SPECIFICATIONS

Items	Specifications
Power supply	5VDC(4.5-7VDC),9-36VDC is optional
Measuring range	+10°
Measuring axis	X,Y
Resolution	0.1°
Absolute	0.1°
Zero temperature	土0.008%/C
Sensitivity temperature	≤150ppm/C
Power on time	500mS
Response time	50mS
Output signal	RS232/RS485/TTL is optional
Working current	40mA typ.
Operating Temperature	-40'°C-+85°C
Storage Condition	10°C-60°C@20%-90%RH
EMC	According to EN61000
MTBF	≥45000 hours
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms, 3Times/Axis(half sine)
Anti-vibration	10grms, 10~1000Hz
Ingress Protection	IP67
Cables	Shielded cables 4*0.4mm2 , length=1m default
Housing material	Aluminium alloy
Installation	3*M4 screws
Weight	90g(without cable)
