Ammonium ion (NH4+) Sensor

ชื่อสินค้า : Ammonium ion (NH4+) Sensor

รหัส : RK500-15

แบรนด์ : RIKA

ไฟล์เอกสาร :

Download

รายละเอียด :

PRODUCT DESCRIPTION

The RK500-15 Ammonia Nitrogen Sensor uses an ammonium ion electrode based on PVC film to test the content of ammonium ion in water. With temperature compensation, the measurement is fast, simple and accurate. The internal reference liquid of the ammonium ion electrode exudates from the microporous salt bridge very slowly. The service life of the electrode is longer than that of the ordinary industrial electrode.

SPECIFICATIONS

Item	Technical Specification
Range	0-10ppm,0-100ppm
Accuracy	±5%FS
Resolution	0.1mg/L
Drift	≤0.1ppm/24h
Supply	7-28VDC
Output	4-20mA@RS485(Modbus-RTU)
Pressure resistance	<0.5MPa
Response time	5s (98%,flowing liquid) ,14s (98%,stationary liquid)
Power consumption	<0.5W
Operating temperature	0-55℃
Probe material	ABS
Ingress protection	IP68
Cable length	5m default, other length optional
Storage	10-60℃@20%-90%RH

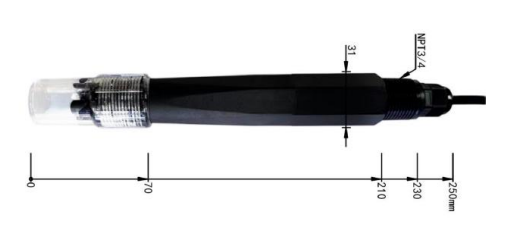

DIMENSION

Unit：mm
