ชื่อสินค้า : pH Sensor รหัส : RK500-12 แบรนด์ : RIKA ไฟล์เอกสาร :

Download

รายละเอียด :

Overview

RK500-12 pH sensor is a good solution to measure the pH value. It does not require a professional calibration instrument and is simple to operate. It can be used to continuously measure the pH value of wastewater. It is suitable for agriculture, sewage treatment plants, chemical industry, printing and dyeing, papermaking, pharmaceuticals, electroplating and environmental protection.

Features

• Low impedance sensitive glass film
• Temperature compensation for thermal stability
• Not easily hydrolyzed, eliminating alkali errors
• Simple operation and high reliability
• Internal signal isolation, strong anti-interference
• Widely power supply(7-28VDC)
• Low drift, small size, fast response speed
• Stable performance and long service life
• Easy electrode replacement

Applications

• Environmental protection
• Agriculture
• Aquaculture
• Water conservancy
• Sewage treatment
• Industrial wastewater treatment

Quick Selection Guide

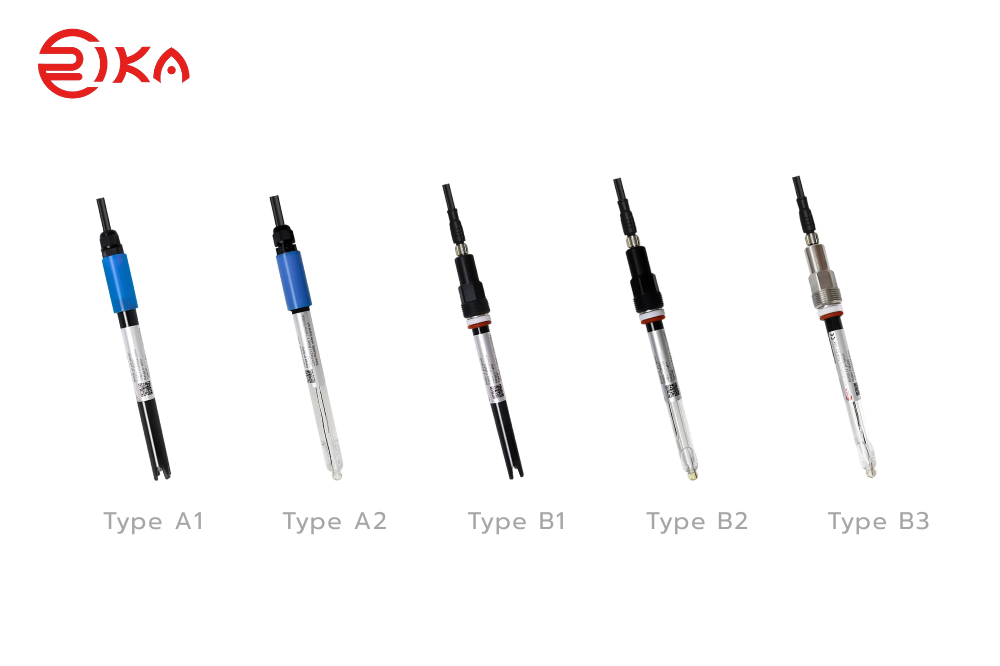

Type	Details	Application
A1	Small immersion type,direct cable	Conventional water, sewage, nutrient solution, etc
A2	Small immersion type,direct cable	Industrial water, seawater, environmental protection, etc
B1	PG13.5 thread installation,waterproof connector	Conventional water, sewage, nutrient solution, etc
B2	PG13.5 thread installation,waterproof connector	Industrial water, seawater, environmental protection, etc
B3	PG13.5 thread installation,waterproof connector	High temperature environment(>80℃)

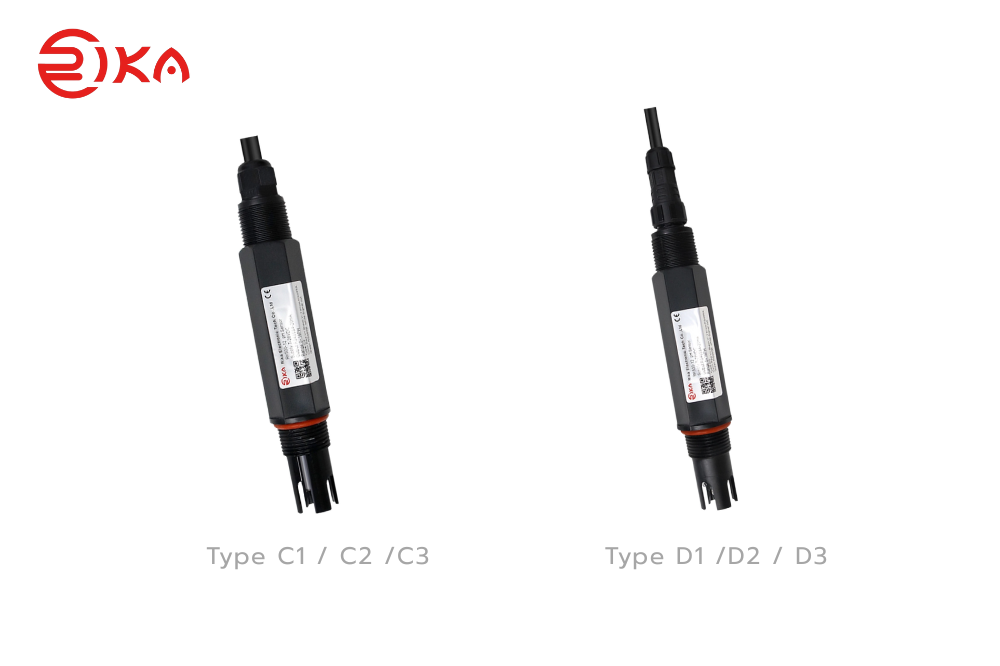

C1	Upper: NPT3/4 thread,lower: NPT3/4 thread,direct cable	Conventional water, river water, etc
C2	Upper: NPT3/4 thread,lower: NPT3/4 thread,direct cable	Industrial water, seawater, environmental protection, etc
C3	Upper: NPT3/4 thread,lower: NPT3/4 thread,direct cable	High temperature environment(>80℃)
D1	Upper: NPT3/4 thread,lower: NPT3/4 thread,waterproof connector	Conventional water, river water, etc
D2	Upper: NPT3/4 thread,lower: NPT3/4 thread,waterproof connector	Industrial water, seawater, environmental protection, etc
D3	Upper: NPT3/4 thread,lower: NPT3/4 thread,waterproof connector	High temperature environment(>80℃)

Technical Parameter

Type	A1	A2	B1	B2	B3
Material	PC+ABS	Glass+PC+ABS	PC+ABS	Glass+ABS	Glass+316L
Operation temperature	0-60℃	0-80℃	0-60℃	0-80℃	0-100℃
Working pressure	0.6Mpa	0.8Mpa	0.6Mpa	1Mpa	1Mpa
Thread	/	/	PG13.5	PG13.5	PG13.5
Electrical connection	Direct cable	Direct cable	M8 waterproof connector	M8 waterproof connector	M8 waterproof connector
Application	Conventional water, sewage, nutrient solution, etc	Industrial water, seawater, environmental protection, etc	Conventional water, sewage, nutrient solution, etc	Industrial water, seawater, environmental protection, etc	High temperature occasions, etc
Range	0-14pH
Resolution	0.01pH
Accuracy	0.01pH
Response time	10 seconds (98% flowing liquid)
Temperature compensation	Thermal resistance
Power supply	7-28VDC(< 0.15W)
Output	RS485 & 4-20mA
Dimensions	Φ12.0 x 170.0
Ingress protection	IP68



Type	C1	C2	C3	D1	D2	D3
Materia	Glass+PC+ABS	Glass+PC+ABS	Glass+PPS	Glass+PC+ABS	Glass+PC+ABS	Glass+PPS
Operation temperature	0-60℃	0-80℃	0-100℃	0-60℃	0-80℃	0-100℃
Working pressure	0.6Mpa	1Mpa	1Mpa	0.6Mpa	1Mpa	1Mpa
Response time	10 seconds (98% flowing liquid)				8 seconds (98% flowing liquid)
Electrical connection	Direct cable			M16 waterproof connector
Application	Conventional water, river water, etc	Industrial water, seawater, environmental protection, etc	High temperature occasions, etc	Conventional water, river water, etc	Industrial water, seawater, environmental protection, etc	High temperature occasions, etc
Thread	Upper: NPT3/4 thread,Lower: NPT3/4 thread
Range	0-14pH
Resolution	0.01pH
Accuracy	0.01pH
Temperature compensation	Thermal resistance
Power supply	7-28VDC(< 0.15W)
Output	RS485 & 4-20mA
Dimensions	Φ31.0 x 180.0
Ingress protection	IP68
