ชื่อสินค้า : Turbidity Sensor รหัส : RK500-07 แบรนด์ : RIKA ไฟล์เอกสาร :

Download

รายละเอียด :

Overview

RK500-07 Turbidity Sensor is an instrument which uses optical principle to measure the degree of turbidity of water. Turbidity is caused by suspended particles in water. The suspended particles reflect the incident light. Usually, the scattered light in the direction of 90° is used as the test signal, so the unit tested is called NTU. This method is suitable for testing low to medium range, ranging from 0.01 to 4000FNU. According to EN27027 and ISO7027 standards, infrared light of 860 nm is used as light source, which cannot be disturbed by the chromaticity of samples.

Features

• On-line & real-time monitoring
• With temperature compensation
• High accuracy
• Easy operation and high reliability
• No external module, a whole design
• Sapphire measurement window

Applications

• Environmental protection
• Water quality monitoring
• Aquaculture
• Clean in place (CIP)
• Sewage treatment
• Industrial wastewater treatment

Technical Parameter

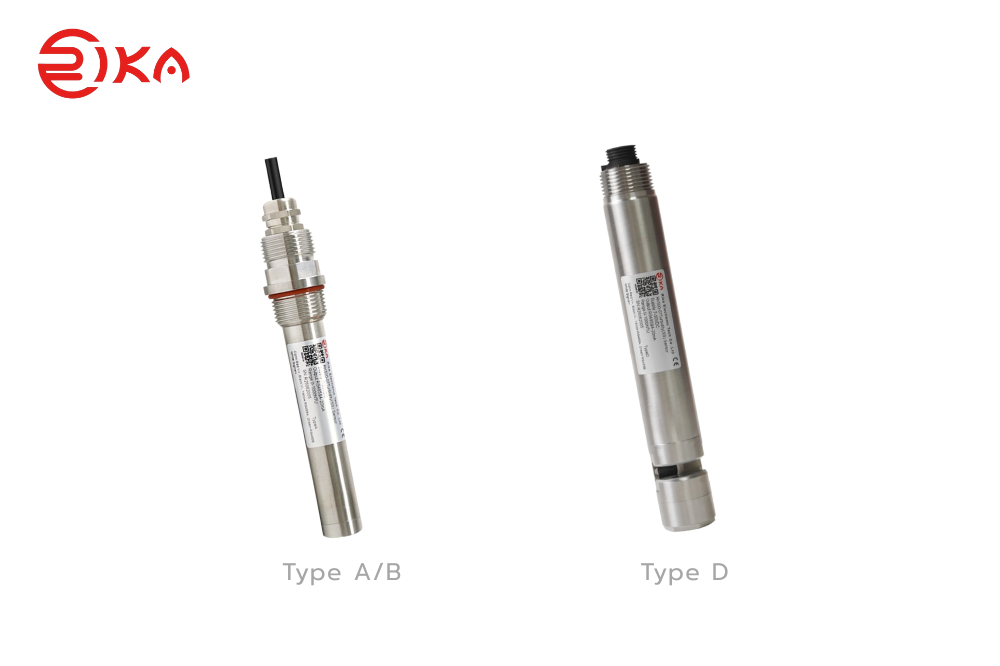

Type	A	B	C	D
Application	General freshwater environment	Mariculture, strongly corrosive sewage, complex scenes etc	Pipe installation	With cleaning brush, maintenance free
Self-cleaning	/	/	/	Yes
Main material	316L	titanium alloy	316L, UPVC	316L
Screw thread	Upper: NPT3/4, Lower: NPT3/4		/	NPT3/4
Accuracy	±1%FS			±2%FS
Resolution	0.01NTU(≤10NTU) , 0.1NTU(>10NTU)			0.1NTU
Power consumption	<0.2W			Cleaning brush start:<1.5W Cleaning brush stop:<0.2W
Operating temperature	0-+60℃			-5-+60℃
Range	0-10NTU ,0-100NTU,0-1000NTU,0-4000NTU
Supply	7-28VDC
Output	4-20mA&RS485 at the same time
Response time	1S
Pressure resistance	0.8Mpa
Ingress protection	IP68
Storage	10-60℃@20%-90%RH
Cable length	5m default
