Liquid Temperature Sensor

สินค้า

Liquid Temperature Sensor

ชื่อสินค้า : Liquid Temperature Sensor

รหัส : RK500-01

แบรนด์ : RIKA

ไฟล์เอกสาร :

Download

รายละเอียด :

Product Description

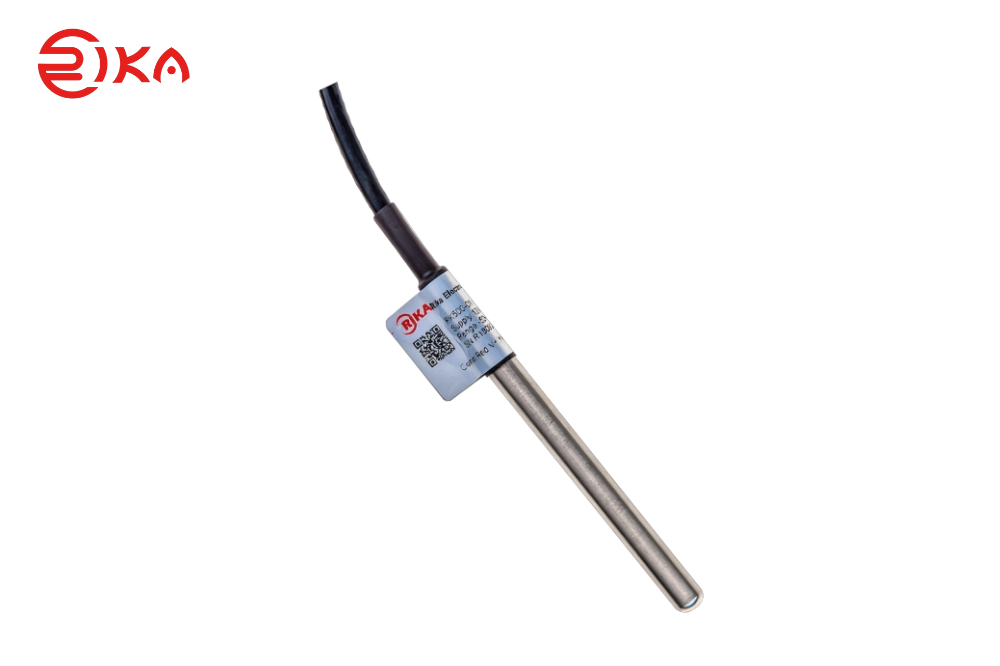

RK500-01 Soil/Liquid Temperature Sensor is used to measure the temperature of the soil or liquid medium, applied to the automatic meteorological station, soil temperature testing, pond or reservoir water temperature detection and other fields.The products can be used into the water or buried in the soil.Sensor with precision thermal resistance as a sensing component, built-in signal sampling and amplification, zero drift and temperature compensation function, has the characteristics of high measuring precision and good stability.

FEATURES

Real-time temperature measurement
Good corrosion resistance, suitable for all kind of soil
High accuracy
Good linearity
All stainless steel probe

APPLICATIONS

Environmental monitoring
Weather station
Aquaculture
Ground temperature detection
Water conservancy
Agriculture

TECHNICAL SPECIFICATION

Item	Technical Specification
Range	-20-+50ºC,-50-+100ºC
Supply	5VDC,12-24VDC
Accuracy	±0.5ºC
Response Time	<1s
Output Signal	PT100/PT1000 class A (3-wires),4-20mA,0-5V,RS485
Operating Temperature	-50ºC-+80ºC
Ingress Protection(probe)	IP68
Storage	10-60ºC@20%-90%RH
Size	4-20mA,0-5V,RS485: Probe:Ø19119 mm,Transmitting module:Ø27120mm PT100: Probe:Ø6 ×50mm
Probe weight(unpacked)	145g
Housing material	304 stainless steel
