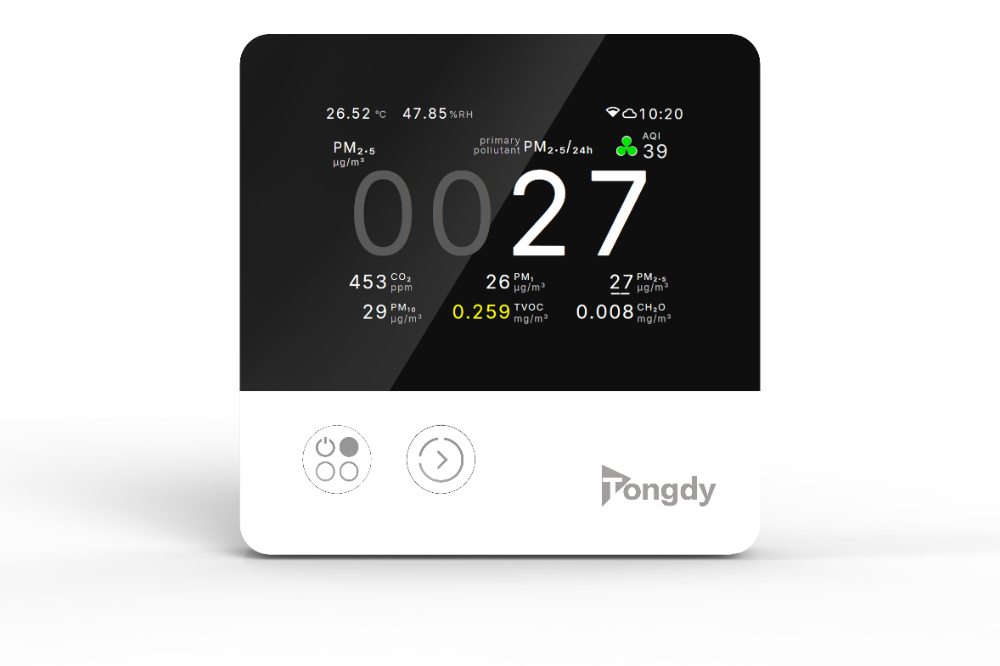

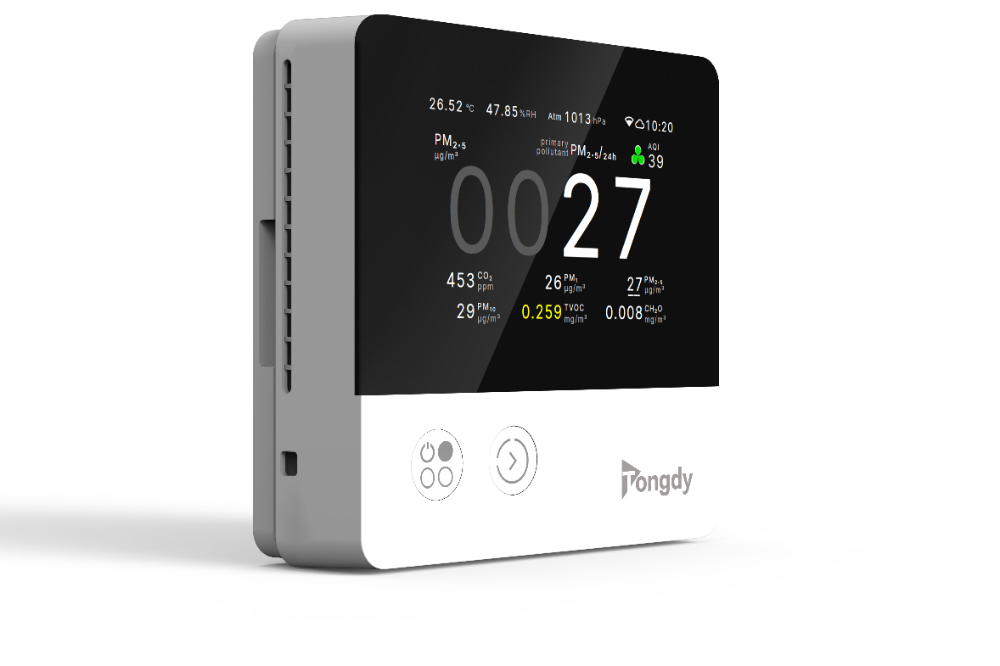

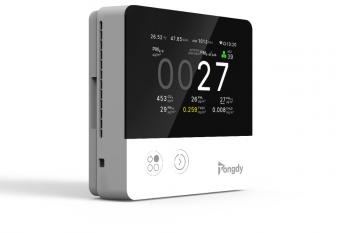

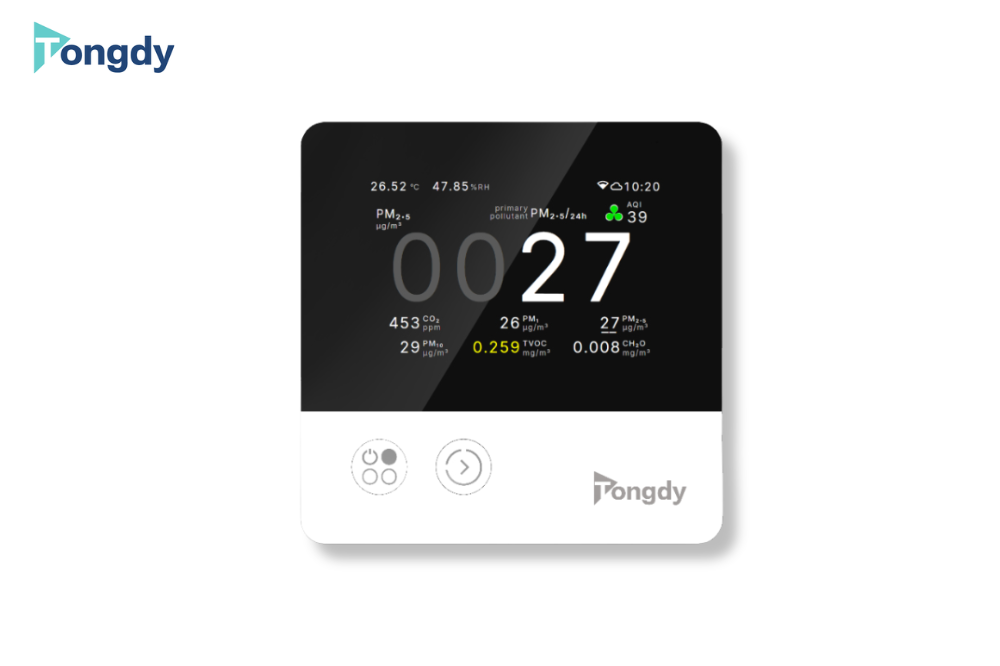

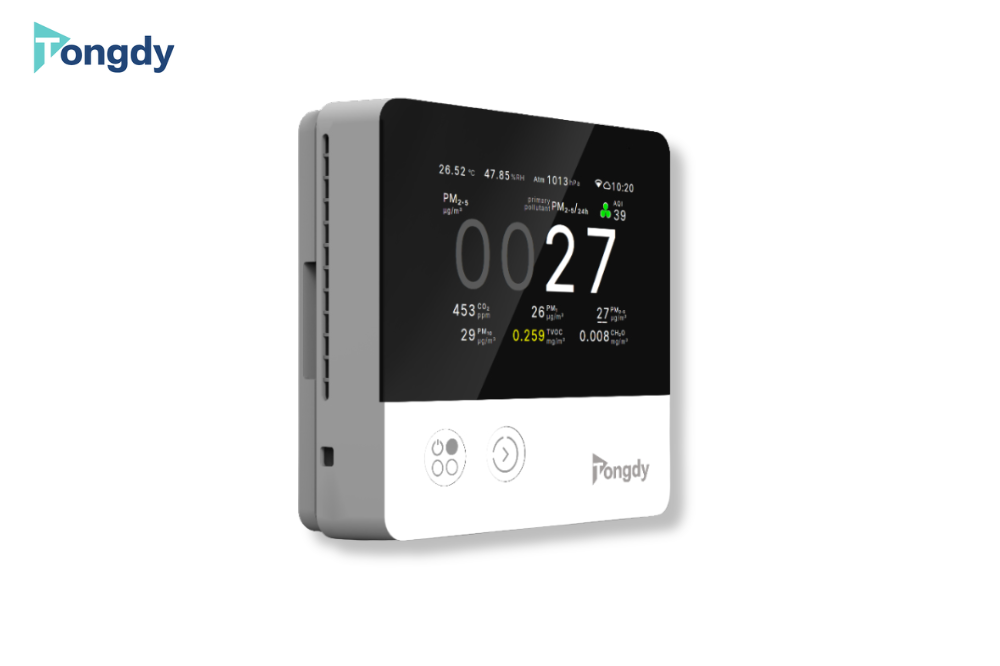

PGX Super Indoor Environment Monitor

สินค้า

PGX Super Indoor Environment Monitor

ชื่อสินค้า : PGX Super Indoor Environment Monitor

แบรนด์ : Tongdy

ไฟล์เอกสาร :

รายละเอียด :

Unique Display

- High-resolution color display with customizable interface options.
- Real-time data display with key parameters prominently highlighted.
- Data curve visualization.
- AQI and primary pollutant information.
- Day and night modes.
- Clock synchronized with the network time.

Network Configuration

· Offer three convenient network setup options:
· Wi-Fi Hotspot: PGX generates a Wi-Fi hotspot, allowing connection and access to an embedded webpage for network configuration.
· Bluetooth:Configure the network using the Bluetooth app.
· NFC: Use the app with NFC for quick, touch-triggered network setup.

Power Supply Options

12~36V DC
100~240V AC PoE 48V
5V Adapter (USB Type-C)

Data Interface

· Various interface options: WiFi, Ethernet, RS485, 4G, and LoRaWAN.
· Dual communication interfaces are available( network interface + RS485)

Various Protocols Selectable

· Support MQTT,Modbus RTU, Modbus TCP,
BACnet-MSTP, BACnet-IP, Tuya, Qlear or other customized protocols.

Data logger Inside

· Local data storage for 3 to 12 months of databased on monitoring parameters and sampling intervals.
· Supporting local data download via the Bluetooth app.

Super Display

· Realtime display multiple monitoring data, primary key data.
· Monitoring data changes color dynamically based on concentration levels for clear and intuitive visualization.
· Display a curve of any data with selectable sampling intervals and time periods.
· Display primary pollutant data and itsAQI.

Super Features

· Flexible operate: Connects to cloud servers for data comparing ,curve display and analysis.Also Operates independently on-site without relying on external data platforms.
· Can choose to synchronize the display of smart TV and PGX for some special areas such as independent areas.
· With its unique remote services, PGX can perform corrections and fault diagnoses over the network.
· Exclusive support for remote firmware updates and customizable service options.
Dual-channel data transmission through both network interface and RS485.

Specifications

Power Supply	12~36VDC, 100~240VAC, PoE (for RJ45 interface), USB 5V (Type C)
Communication Interface	RS485, Wi-Fi (2.4 GHz, supports 802.11b/g/n), RJ45 (Ethernet TCP protocol), LTE 4G,（EC800M-CN ，EC800M-EU ，EC800M-LA）LoRaWAN(Supported regions: RU864, IN865, EU868, US915, AU915, KR920, AS923-1~4)
Communication Protocol	MQTT, Modbus-RTU, Modbus-TCP, BACnet-MS/TP, BACnet-IP, Tuya,Qlear, or other custom protocols
Data Logger Inside	· Storage frequency ranges from 5 minutes to 24 hours. · For example, with data from 5 sensors, it can store records for 78days at 5-minute intervals,156 days at 10-minute intervals, or 468days at 30-minute intervals.Data is downloadable via a Bluetooth app.
Operating Environment	· Temperature: -10~50°C · Humidity: 0~99% RH
Storage Environment	· Temperature: -10~50°C · Humidity: 0~70%RH
Enclosure Material and Protection Level Class	PC/ABS (Fireproof) IP30
Dimensions /Net Weight	112.5X112.5X33mm
Mounting Standard	· Standard 86/50 type junction box (mounting hole size: 60mm); · US standard junction box (mounting hole size: 84mm); · Wall mounting with adhesive.
