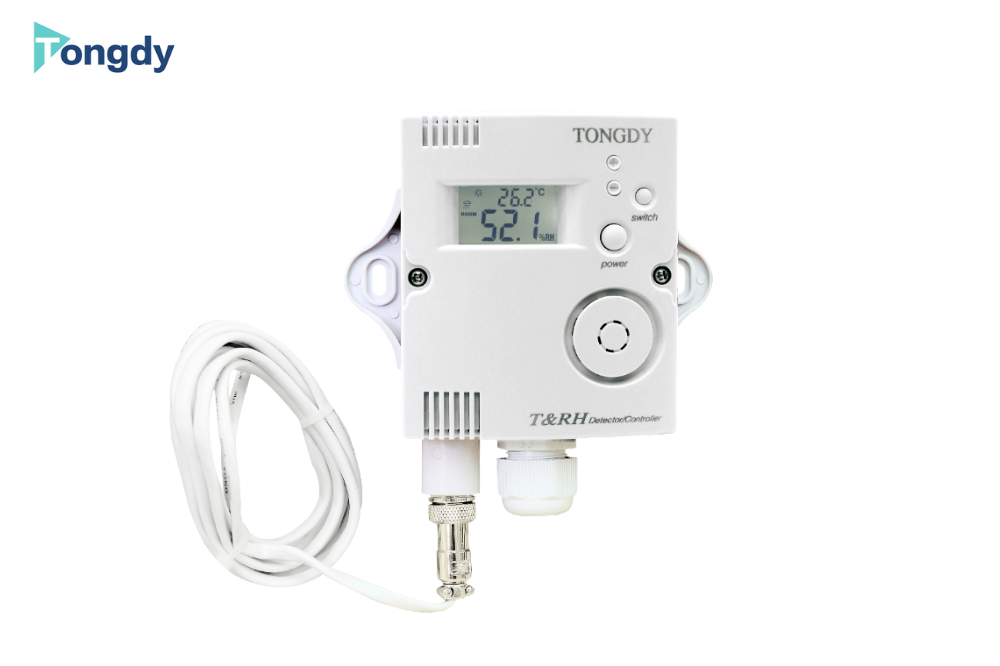

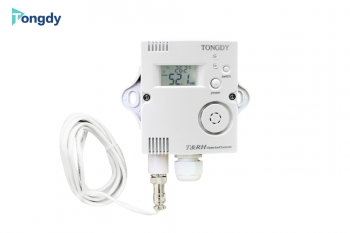

Temperature and Humidity Monitor Controller Model: TKG-TH

ชื่อสินค้า : Temperature and Humidity Monitor Controller Model: TKG-TH

รหัส : Model: TKG-TH

แบรนด์ : Tongdy

ไฟล์เอกสาร :

Download

รายละเอียด :

FEATURES

Designed for detection temperature and relative humidity
High accuracy sensors with combined temperature and relative humidity together with the digital auto compensation
Outside sensing probe design for measurements more accurate, no influence from components heating
Special white backlit LCD can be selected with displaying both actual humidity and temperature
Smart structure for easy disassembly
Provide three types of wall mounting and duct mounting, and split type
Provide up to two dry contact outputs with each 5amp
Friendly operation buttons for setup and operating
Modbus RS485 communication optional
ZigBee wireless optional
CE-Approval

TECHNICAL SPECIFICATIONS

	Temperature	Humidity
Accuracy	±0.5℃ (20~40℃)	±4.5%RH (25℃, 15%-85%RH)
Measuring range	-20℃~60℃(default) 0℃~50℃0℃~60℃ selectable in orders	0 -100%RH
Display resolution	0.1℃	0.1%RH
Stability	±0.1℃	±1%RH per year
Storage environment	20℃-60℃, 5%RH~70%RH non condensing
Connection	Screw terminals/ wire diameter:1.5mm²
Housing	PC/ABS fireproof material
Protection class	IP40
Output	2X5Amp dry contacts
RS485 interface (option)	Modbus RS485 interface optional
Wireless module (option)	ZigBee protocol
Power supply	24VAC±10% or 230VAC±10% selectable
Power cost	230V: ≤2.8W; 24V: ≤2.0W
Dimension	Wall mounting: 85(W)X100(H)X50(D)mm+65mm(extend outside)XÆ19.0mm Duct mounting: 85(W)X100(H)X50(D)mm +135mm (sensor probe)XÆ19.0mm
Net weight	Wall mounting: 280gDuct mounting: 290g
