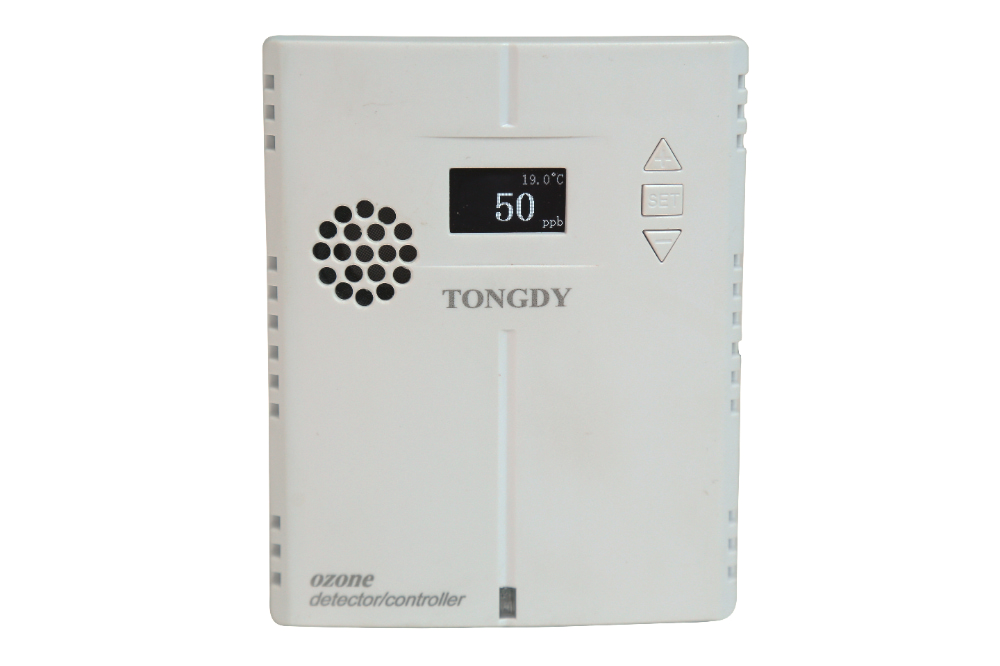

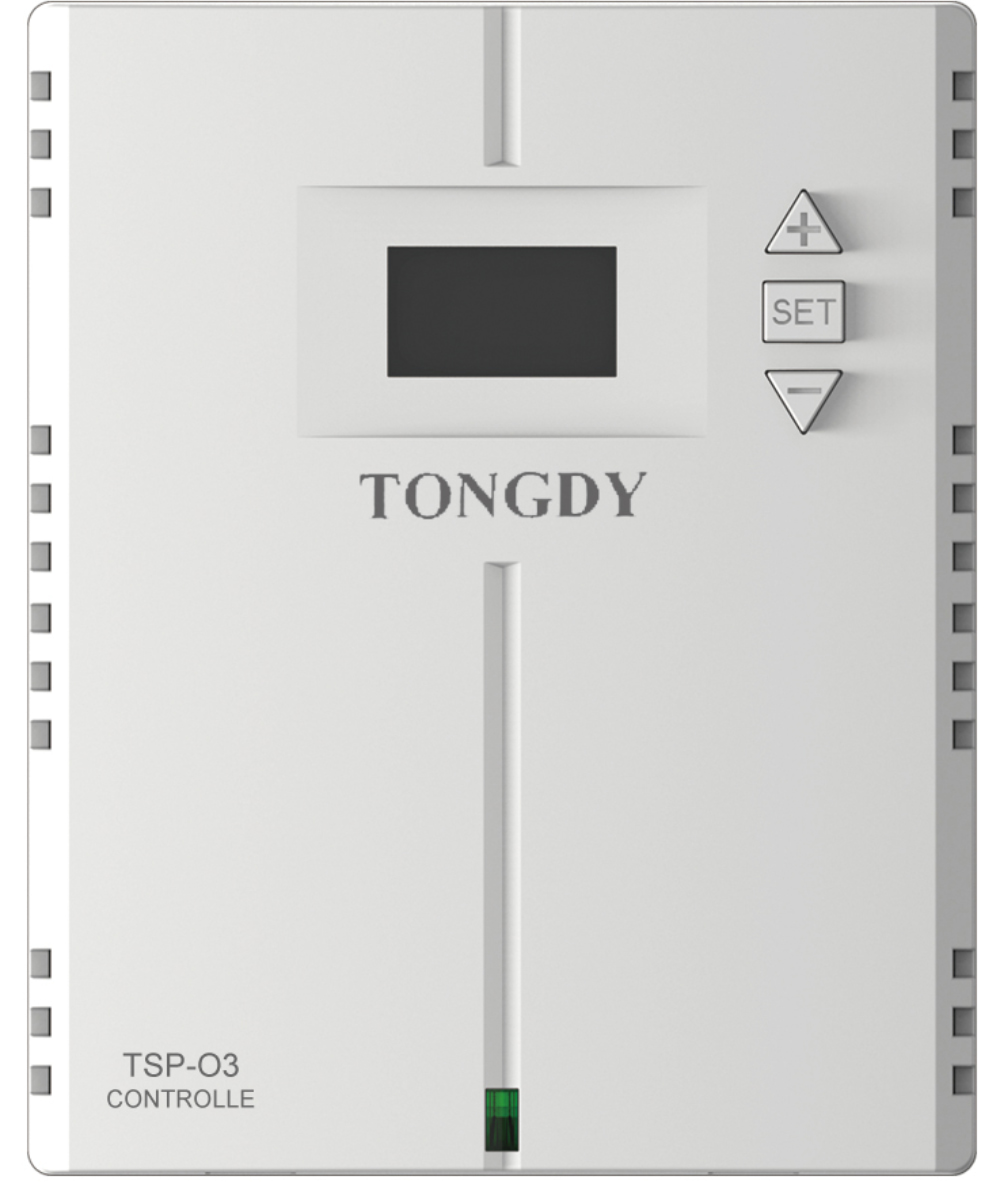

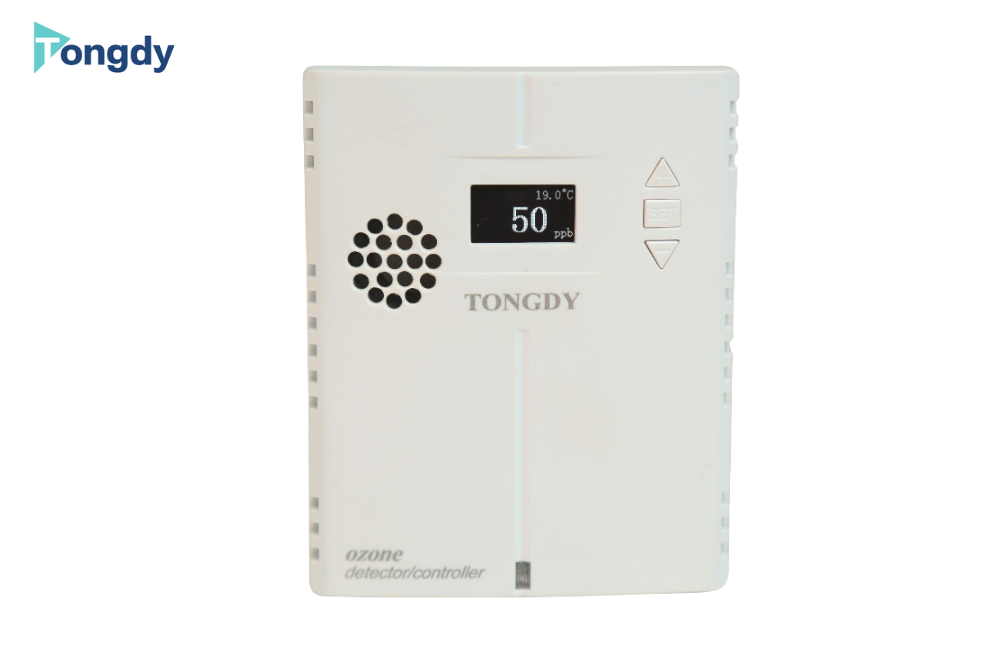

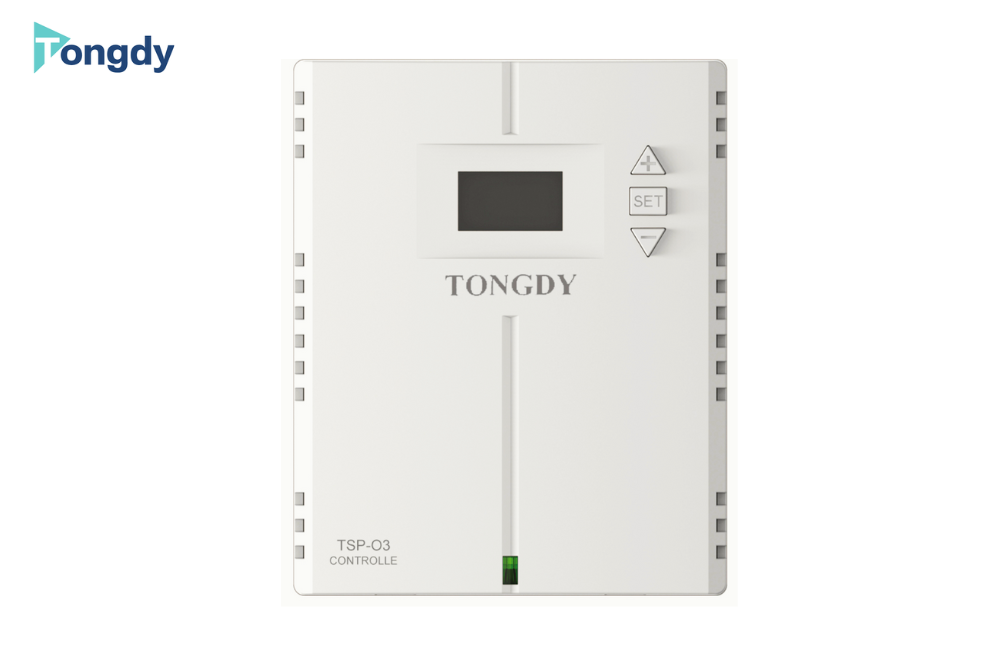

Ozone O3 Gas Meter Model: TSP-O3 Series

ชื่อสินค้า : Ozone O3 Gas Meter Model: TSP-O3 Series

รหัส : Model: TSP-O3 Series

แบรนด์ : Tongdy

ไฟล์เอกสาร :

Download

รายละเอียด :

FEATURES

Real-time measure ozone in air
Control ozone generator or ventilator.
Detect ozone data and connect to BAS system.
Sterilization and disinfection/ Health supervision/ Fruit and vegetable ripening/ Air quality detection etc.

TECHNICAL SPECIFICATIONS

General Data
Power Supply	24VAC/VDC±20% A power adaptor of 100~230VAC/24VDC selectable
Power Consumption	2.0W （average power consumption）
Wiring Standard	Wire section area <1.5mm²
Working Condition	-20~50℃/ 15~95%RH
Storage Conditions	0℃~35℃,0~90%RH (no condensation)
Dimensions/ Net Weight	95(W)X117(L)X36(H)mm / 260g
Manufacturing Process	ISO 9001 Certified
Housing and IP class	PC/ABS fireproof plastic material, protection class: IP30
Compliance	CE-EMC certified
Sensor Data
Sensing Element	Electrochemical Ozone sensor
Sensor lifetime	>2 years, Sensor modular design, easy to replace.
Warm up Time	<60 seconds
Response Time	<120s @T90
Signal Update	1s
Measuring Range	0-500ppb/1000ppb(default)/5000ppb/10000ppb optional
Accuracy	±20ppb + 5% reading
Display Resolution	1ppb (0.01mg/m3)
Stability	±0.5%
Zero Drift	<1%
Humidity Detection	Option
Outputs
Analog Output	One 0-10VDC or 4-20mA linear output for ozone detection
Analog Output Resolution	16Bit
Relay dry contact Output	One relay output to control an ozone generator or a fan Max, switching current 5A (250VAC/30VDC)，resistance Load
Communication Interface	Modbus RTU protocol with 9600bps（default） 15KV antistatic protection
LED Light	Green light: normal working Red light: Ozone sensorfault
Display Screen（optional）	OLED display ozone and temperature/T&RH.

DIMENSIONS
