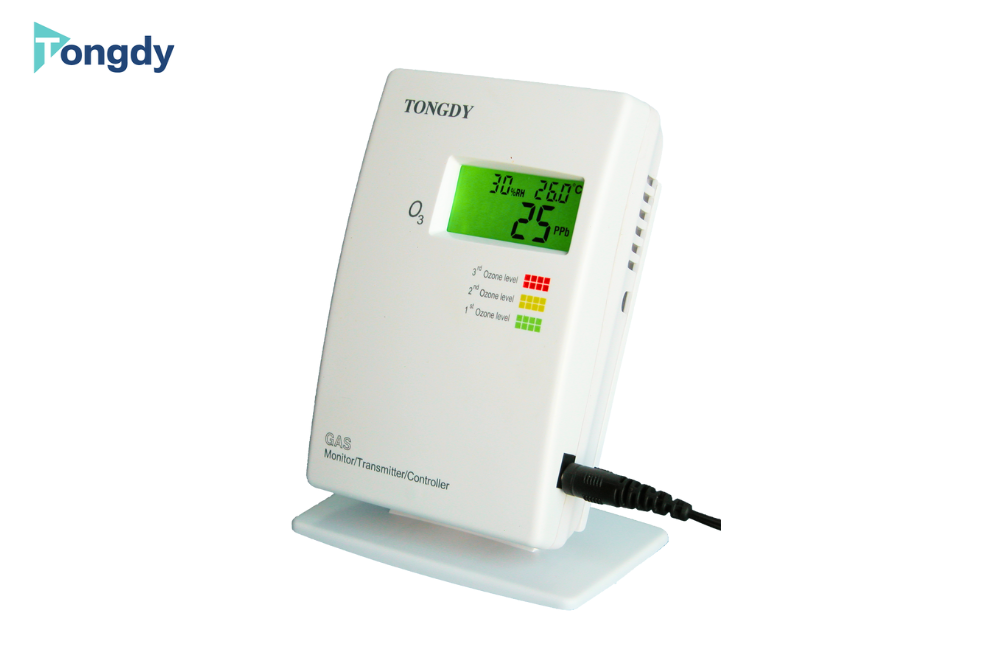

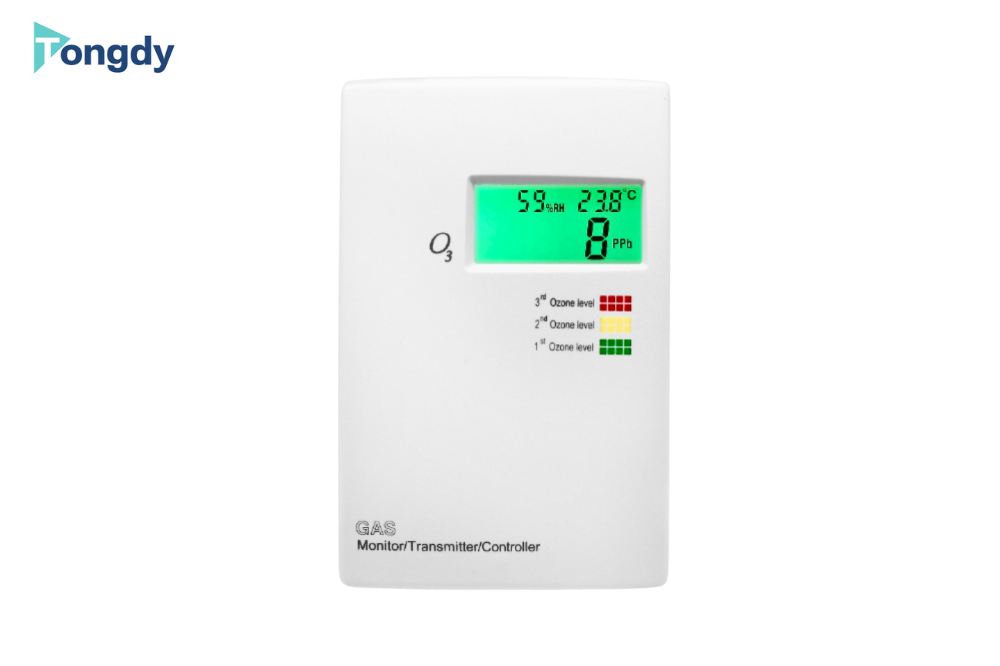

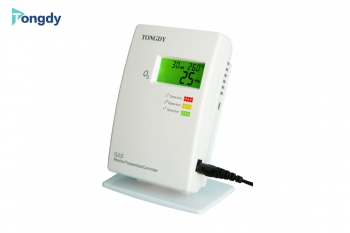

Ozone Gas Monitor Controller with Alarm Model: G09-O3

สินค้า

Ozone Gas Monitor Controller with Alarm Model: G09-O3

ชื่อสินค้า : Ozone Gas Monitor Controller with Alarm Model: G09-O3

รหัส : Model: G09-O3

แบรนด์ : Tongdy

ไฟล์เอกสาร :

Download

รายละเอียด :

FEATURES

Design for real time detecting and monitoring ambiance ozone level and temperature
Electrochemical ozone sensor with high sensitivity
Particular LCD display with three color backlights (Green/Yellow/Red)
Maximum ozone measuring range: 0~5000ppb (0~9.81mg/m3) /0~1000ppbAlso reset the measurement range by end user
2xOn/Off dry contact outputs for two stages alarm device, or control a ozone generator or a ventilator
Buzzer alarm and 3-color backlight LCD indication
Provide 1X analog output (0,2~10VDC/4~20mA) (can be used as transmitter)
Modbus RS485 interface, 15 KV antistatic protection, individual IP address
Provide two easy ways for calibration and setup alarm points via an infrared remote controller or via the RS485 interface.
Temperature measurement and display
Humidity measurement and display optional
Multiple application, wall mounting type and desktop type
Great performance with high quality and low price

TECHNICAL SPECIFICATIONS

Gas Detected	Ozone
Sensing Element	Electrochemical gas sensor
Sensor lifetime	>2 years, removable
Temperature Sensor	NTC
Humidity Sensor	HS series capacitive sensor
Power Supply	24VAC/VDC (power adaptor selectable)
Power Consumption	2.8W
Response Time	<60s @T90
Signal Update	1s
Warm up Time	<60 seconds
Ozone Measuring Range	0~5000ppb (0-5ppm)( 0~9.81mg/m³) 0~1000ppb
Display Resolution	1ppb (0.001ppm) (0.01mg/ m³)
Accuracy	±0.01ppm + 10% reading
Nonlinear	<1%FS
Repeatability	<0.5%
Zero Drift	<1%
Alarm	Buzzer and Yellow or Red backlight switch
Display	Green-normally, Orange – first stage alarm, Red- second stage alarm.
Temperature/humidity Measuring Range	5℃~60℃ (41℉~140℉)/0~80%RH
Analog Output	0～10VDC(default) or 4~20mA linear output selectable
Analog Output Resolution	16Bit
Relay dry contact Output	Two dry-contact outputs Max, switching current 3A (220VAC/30VDC), resistance Load
Modbus Communication Interface	Modbus RTU protocol with 19200bps(default) 15KV antistatic protection
Working Condition/Storage Conditions	5℃~60℃ (41℉~140℉)/ 0~ 80% RH
Net Weight	190g
Dimensions	130mm(H)×85mm(W)×36.5mm(D)
Installation Standard	65mm×65mm or 85mmx85mm or 2”×4” wire box
Interface Connection (Max)	9 terminals
Wiring Standard	Wire section area<1.5mm²
Manufacturing Process	ISO 9001 Certified
Housing and IP class	PC/ABS fireproof plastic material, protection class: IP30
Compliance	EMC Directive 89/336/EEC
