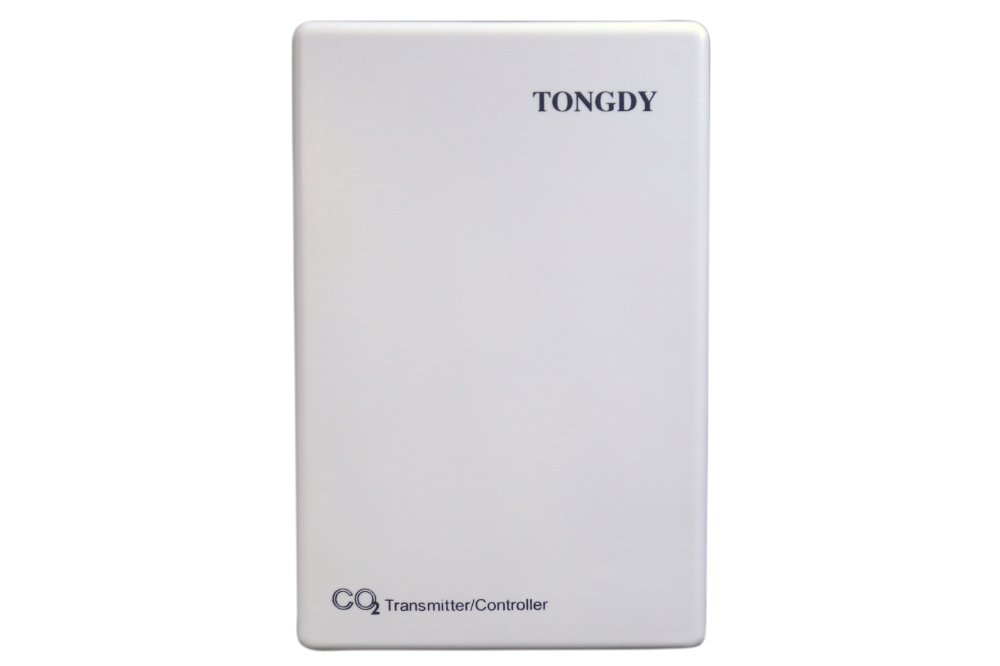

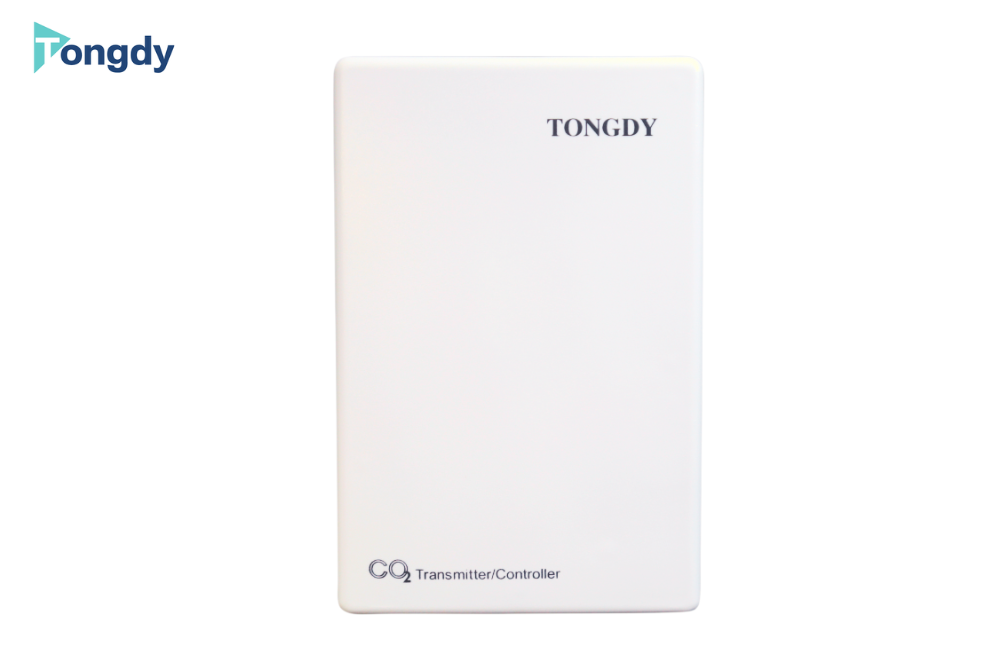

NDIR CO2 Sensor Transmitter with BACnet Model: G01-CO2-N Series

ชื่อสินค้า : NDIR CO2 Sensor Transmitter with BACnet Model: G01-CO2-N Series

รหัส : Model: G01-CO2-N Series

แบรนด์ : Tongdy

ไฟล์เอกสาร :

Download

รายละเอียด :

FEATURES

BACnet communication
CO2 detection with 0~2000ppm range
0~5000ppm/0~50000ppm range selectable
NDIR infrared CO2 sensor with More than 10 years lifetime
Patented self-calibration algorithm
Optional temperature and humidity detection
Provide up to 3xanalog linear outputs for measurements

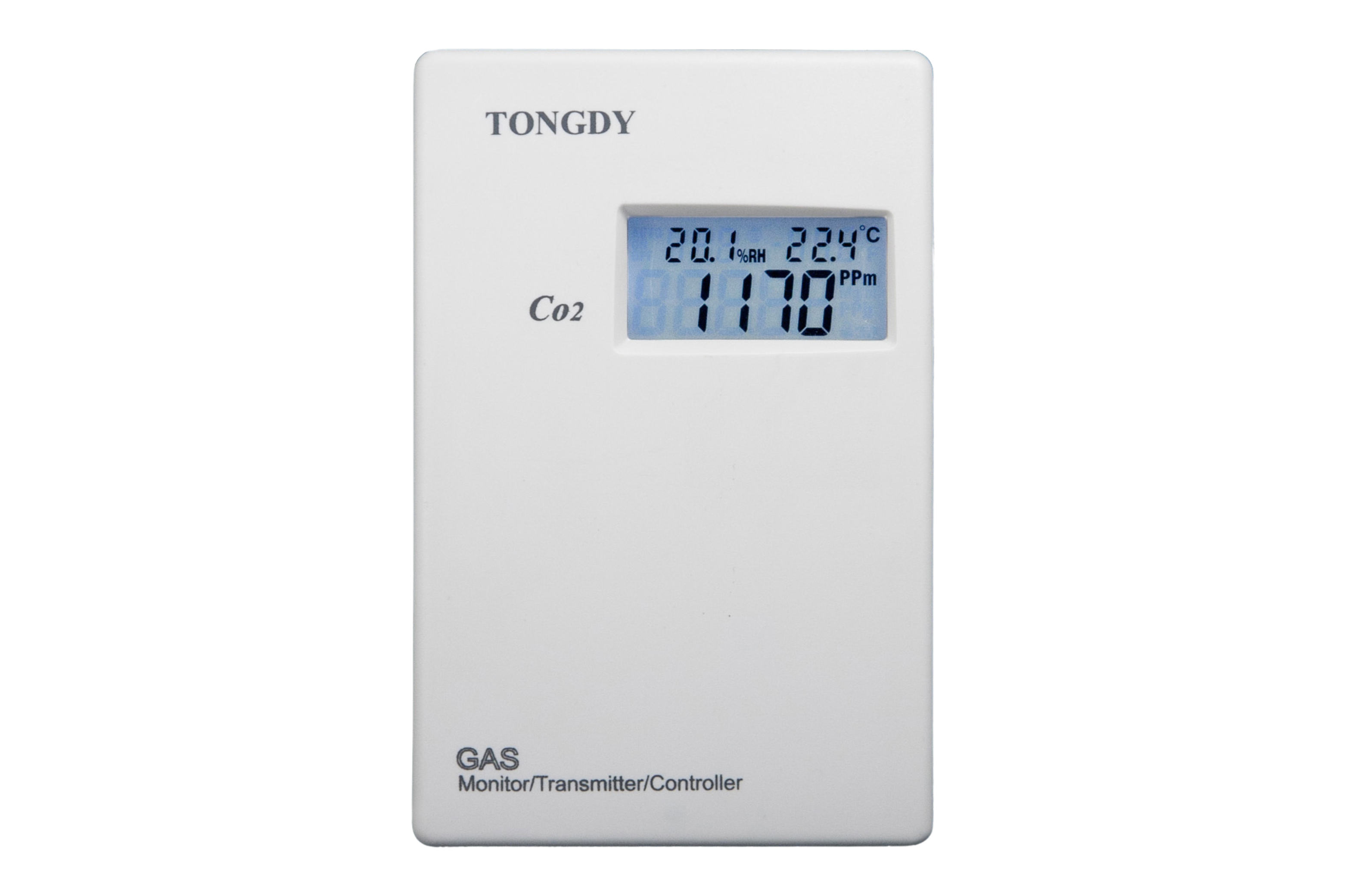

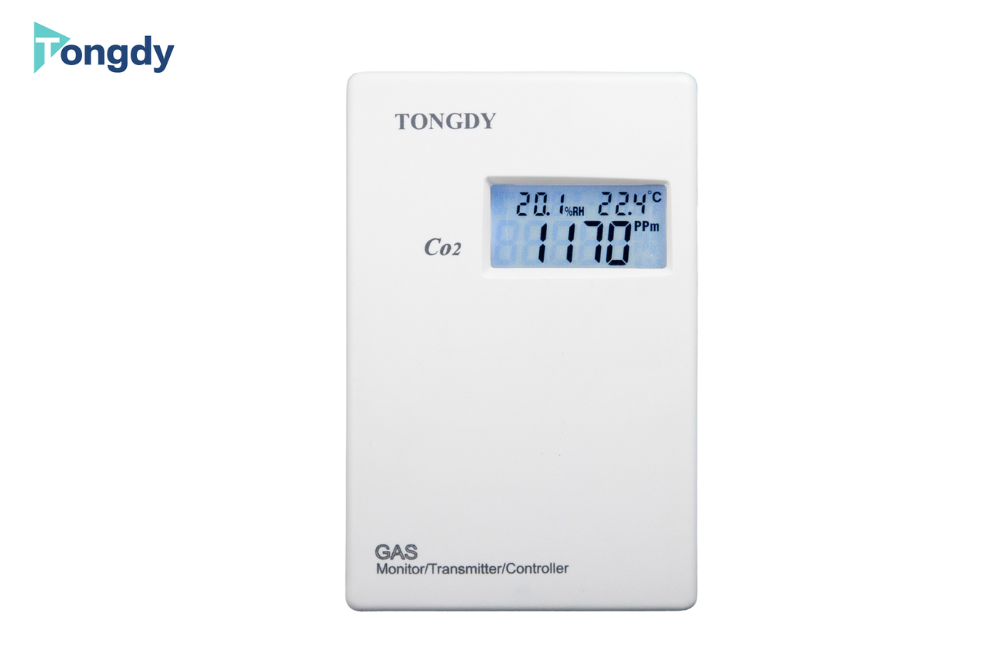

Optional LCD display of CO2 and temperature and humidity
24VAC/VDC power supply
EU standard and CE-approval

TECHNICAL SPECIFICATIONS

CO2 Measurement
Sensing element		Non-Dispersive Infrared Detector (NDIR)
CO2 range		0~2000ppm/0～5,000ppm/0~50,000ppm optional
CO2 Accuracy		±30ppm + 3% of reading @22℃(72℉)
Temperature dependence		0.2% FS per℃
Stability		<2% of FS over life of sensor (15 year typical)
Pressure dependence		0.13% of reading per mm Hg
Calibration		ABC Logic Self Calibration Algorithm
Response time		<2 minutes for 90% step change typical
Signal update		Every 2 seconds
Warm-up time		2 hours (first time) / 2 minutes (operation)
	Temperature		Humidity
Measuring range	0℃~50℃(32℉~122℉) (default)		0 -100%RH
Accuracy	±0.4℃ (20℃~40℃)		±3%RH (20%-80%RH)

Display resolution	0.1℃		0.1%RH
Stability	<0.04℃/year		<0.5%RH/year
General Data
Power supply		24VAC/VDC±10%
Consumption		2.2 W max. ; 1.6 W avg.
Analog outputs		1~3 X analog outputs 0~10VDC(default) or 4~20mA (selectable by jumpers) 0~5VDC (selected at placing the order)
Operation conditions		0~50℃(32~122℉); 0~95%RH, non condensing
Storage conditions		10~50℃(50~122℉) 20~60%RH
Net Weight		250g
Dimensions		130mm(H)×85mm(W)×36.5mm(D)
Installation		wall mounting with 65mm×65mm or 2”×4”wire box
Housing and IP class		PC/ABS fireproof plastic material, protection class: IP30
Standard		CE-Approval
