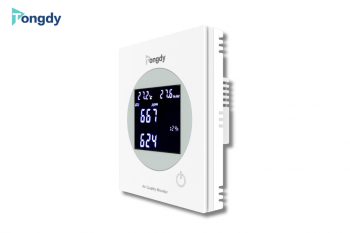

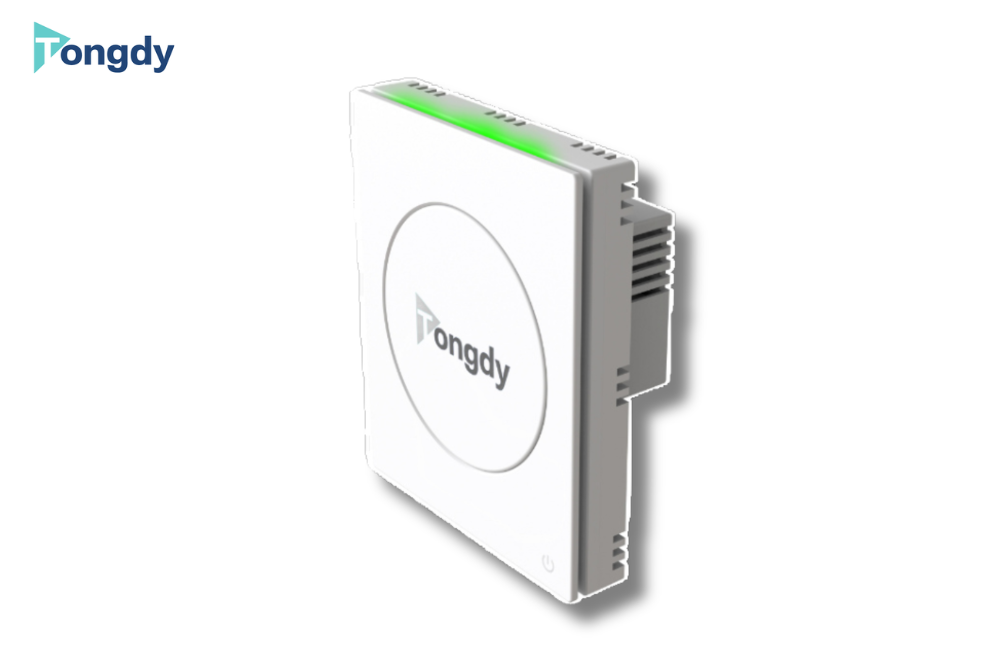

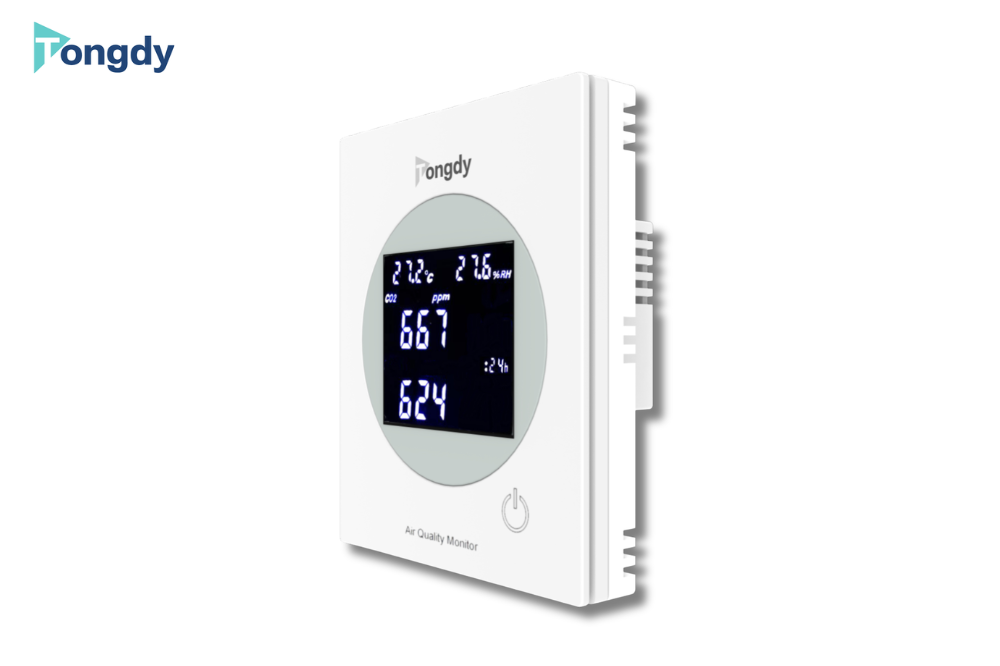

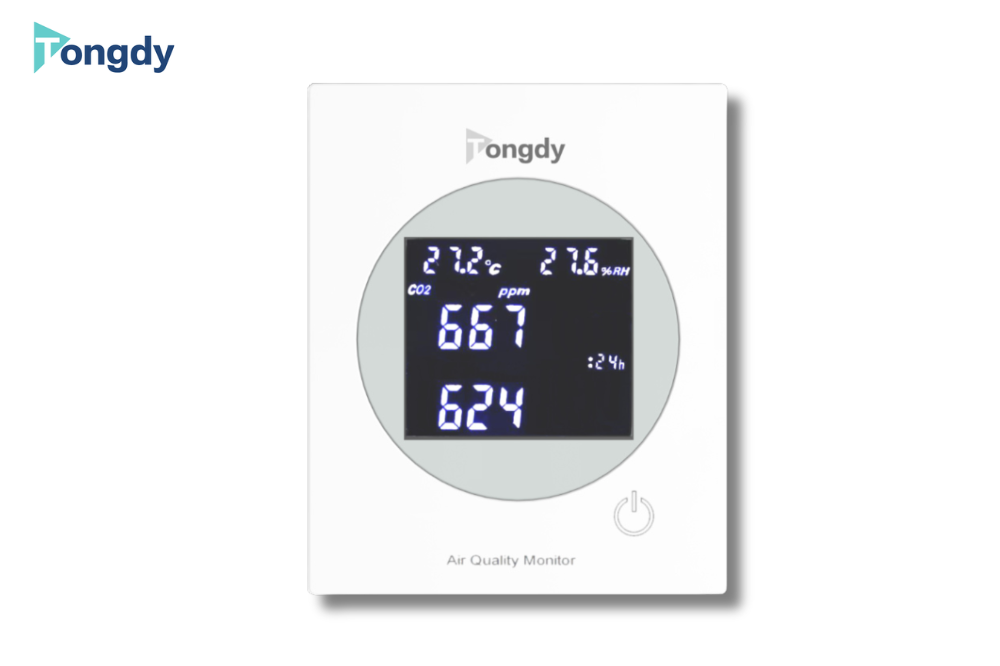

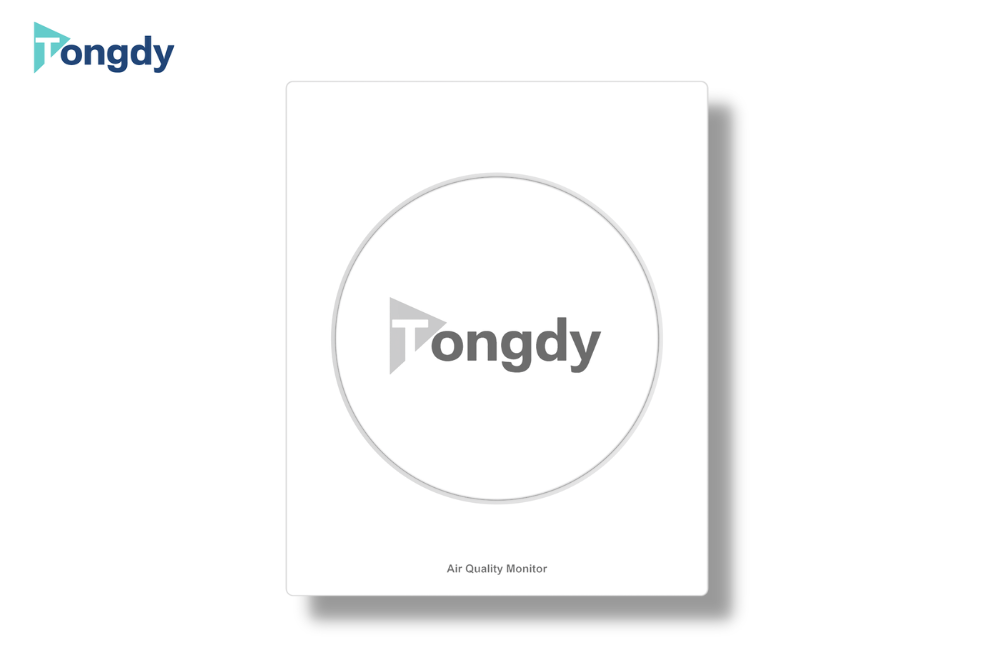

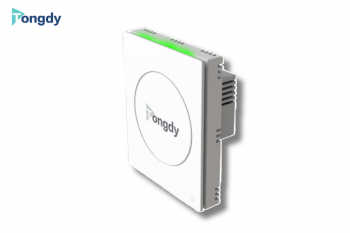

CO2 Monitor with Wi-Fi RJ45 and Data Logger Model: EM21-CO2

สินค้า

CO2 Monitor with Wi-Fi RJ45 and Data Logger Model: EM21-CO2

ชื่อสินค้า : CO2 Monitor with Wi-Fi RJ45 and Data Logger Model: EM21-CO2

รหัส : Model: EM21-CO2

แบรนด์ : Tongdy

ไฟล์เอกสาร :

รายละเอียด :

General Data

Detection Parameters(max.)	CO2, Temp.& RH (optional PM2.5 or TVOC)
Output (Optional)	RS485 (Modbus RTU) WIFI @2.4 GHz 802.11b/g/n
Operating Environment	Temp：0~60℃ Humidity︰0~99%RH
Storage Conditions	0℃~50℃, 0~70%RH
Power Supply	24VAC/VDC±20%,100~240VAC
Overall Dimension	91.00mm111.00mm51.00mm
Power consumption	Average 1.9w (24V) 4.5w( 230V)
Installation(embedded)	Standard 86/50 pipe box (installation hole distance 60mm) American standard pipe box (installation hole distance 84mm)

PM2.5 Data

Sensor	Laser particle sensor, light scattering method
Measuring Range	0~500μg ∕m3
Output Resolution	1μg∕ m3
Accuracy (PM2.5）	<15%

CO2 Data

Sensor	Non-Dispersive Infrared Detector (NDIR)
Measuring Range	400～5,000ppm
Output Resolution	1ppm
Accuracy	±50ppm + 3% of reading or 75ppm

Temperature and Humidity Data

Sensor	High precision digital integrated temperature and humidity sensor
Measuring Range	Temp: 0℃~60℃ Humidity:0~99%RH
Output Resolution	Temp:0.01℃ Humidity:0.01%RH
Accuracy	Temp:±0.8℃ Humidity:±4.5%RH

TVOC Data
