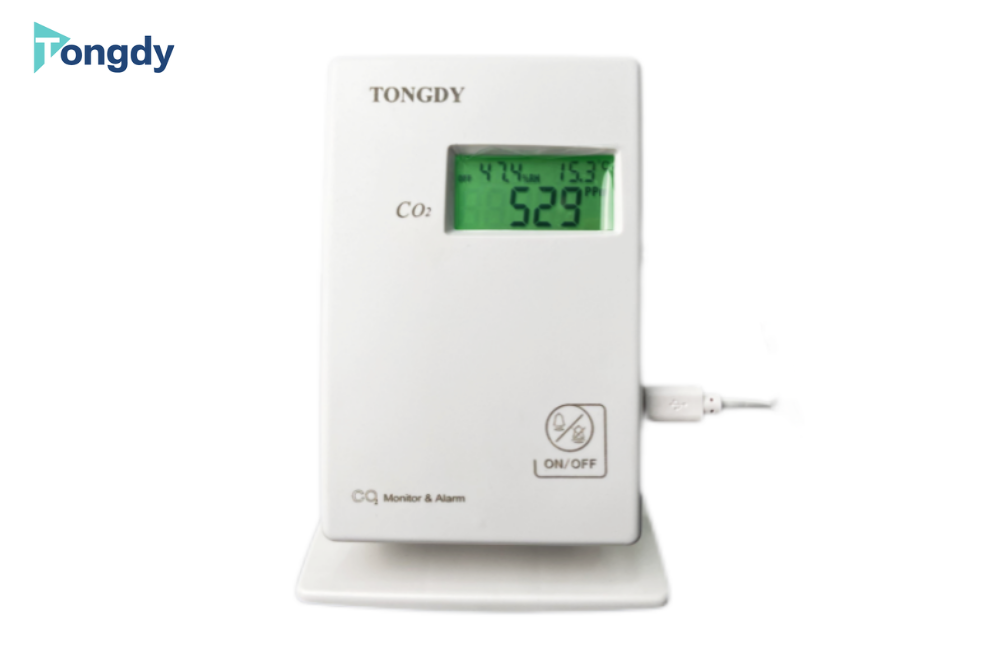

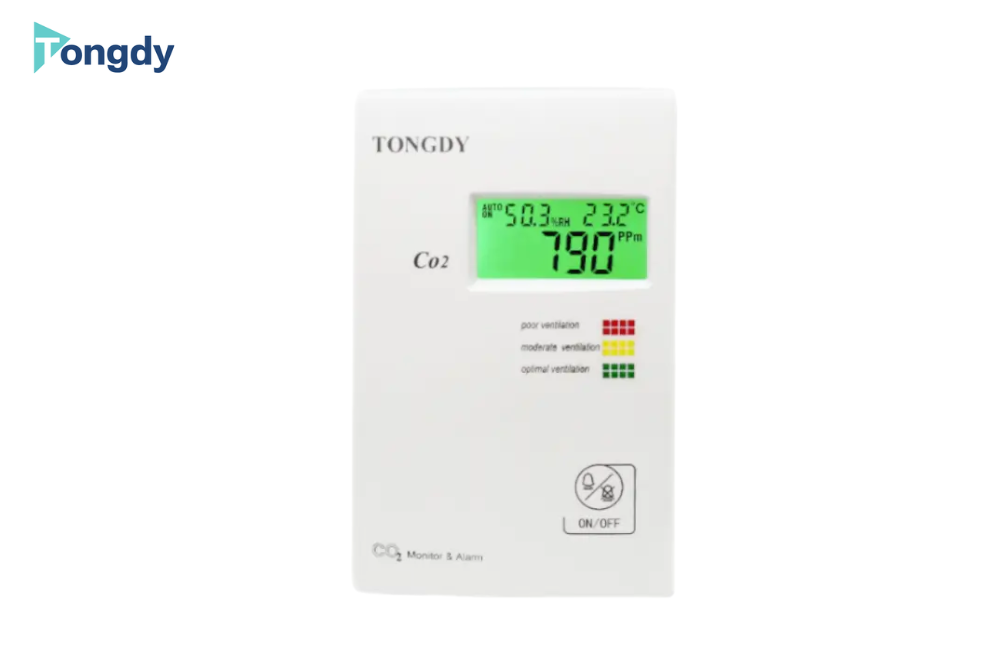

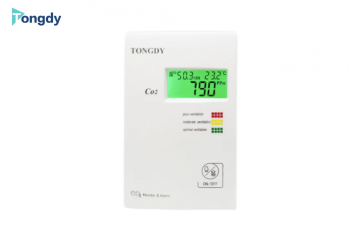

CO2 Monitor with Data Logger,WiFi and RS485 Model: G01-CO2-P

สินค้า

CO2 Monitor with Data Logger,WiFi and RS485 Model: G01-CO2-P

ชื่อสินค้า : CO2 Monitor with Data Logger,WiFi and RS485 Model: G01-CO2-P

รหัส : Model: G01-CO2-P

แบรนด์ : Tongdy

ไฟล์เอกสาร :

รายละเอียด :

General Data

Power supply	Select one as below: Power Adapter: USB 5V (≧1A USB adapter), or DC5V (1A). Power terminal: 24VAC/VDC Lithium battery: 1pc NCR18650B (3400mAh), can work continuously for 14 days.
Consumption	1.1W max. 0.03 W avg. (270mA@4.2Vmax. ; 7mA@4.2Vavg.)
Gas detected	Carbon Dioxide (CO₂)
Sensing element	Non-Dispersive Infrared Detector (NDIR)
Accuracy@25℃ (77℉)	±50ppm + 3% of reading
Stability	<2% of FS over life of sensor (15 yr typical)
Calibration interval	ABC Logic Self Calibration Algorithm
CO2 sensor life	15 years
Response Time
Signal update	Every 2 seconds
Warm up time
CO₂ measuring range	0～5,000ppm
CO2 Display resolution	1ppm
3-color backlight or 3- LED light for CO2 range	Green : Yellow: 1001~1400ppm Red: >1400ppm
LCD Display	Real time CO2, with Temp &RH selected
Temperature range (option)	-20～60℃
Humidity range (option)	0～99%RH
Data logger	Up to 145860 points storage 156 days data storage every 5 min. or 312 days every 10 min. for CO2 104 days data storage every 5 min. or 208 days every 10 min. For CO2 plus temp.&RH Download data via BlueTooth APP
Output (option)	WiFi @2.4 GHz 802.11b/g/n MQTT protocol RS485 Modbus RTU
Storage conditions	0~50℃(32~122℉), 0~90%RH non condensing
Dimensions/ Weight	130mm(H)×85mm(W)×36.5mm(D) / 200g
Housing and IP class	PC/ABS fireproof plastic material, protection class: IP30
Installation	Wall mounting (65mm×65mm or 2”×4”wire box) Desktop placement with an optional desktop bracket
Standard	CE-Approval
