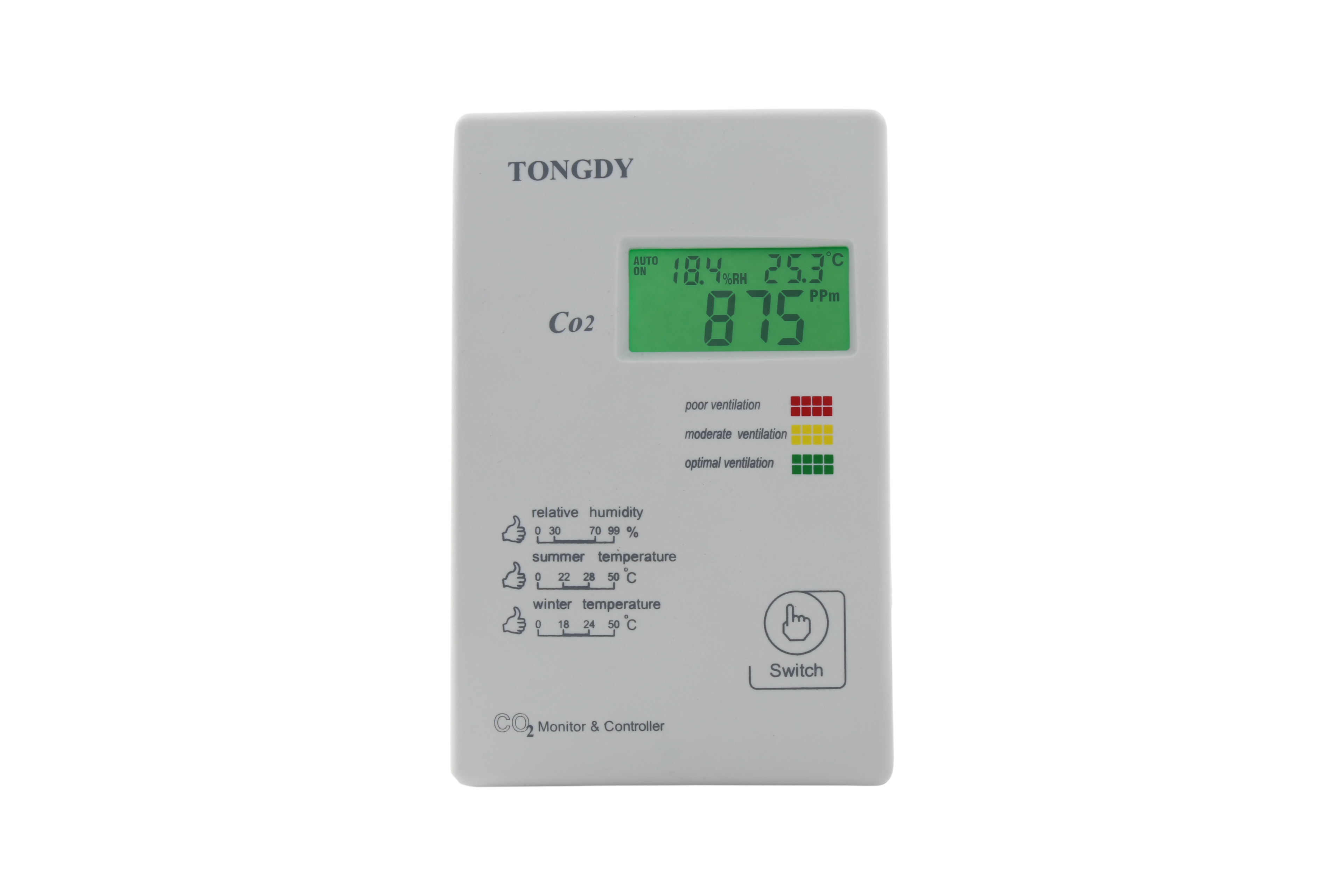

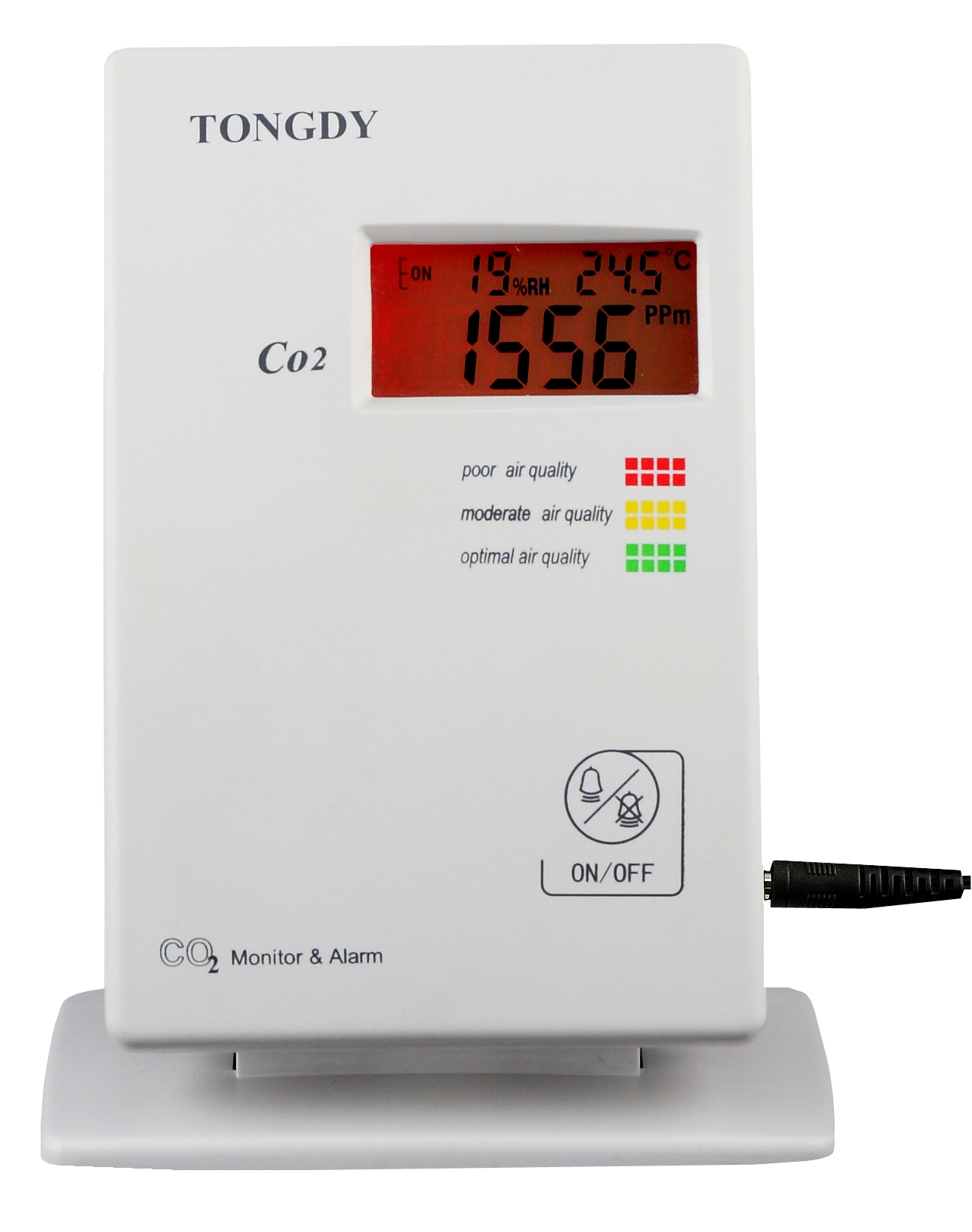

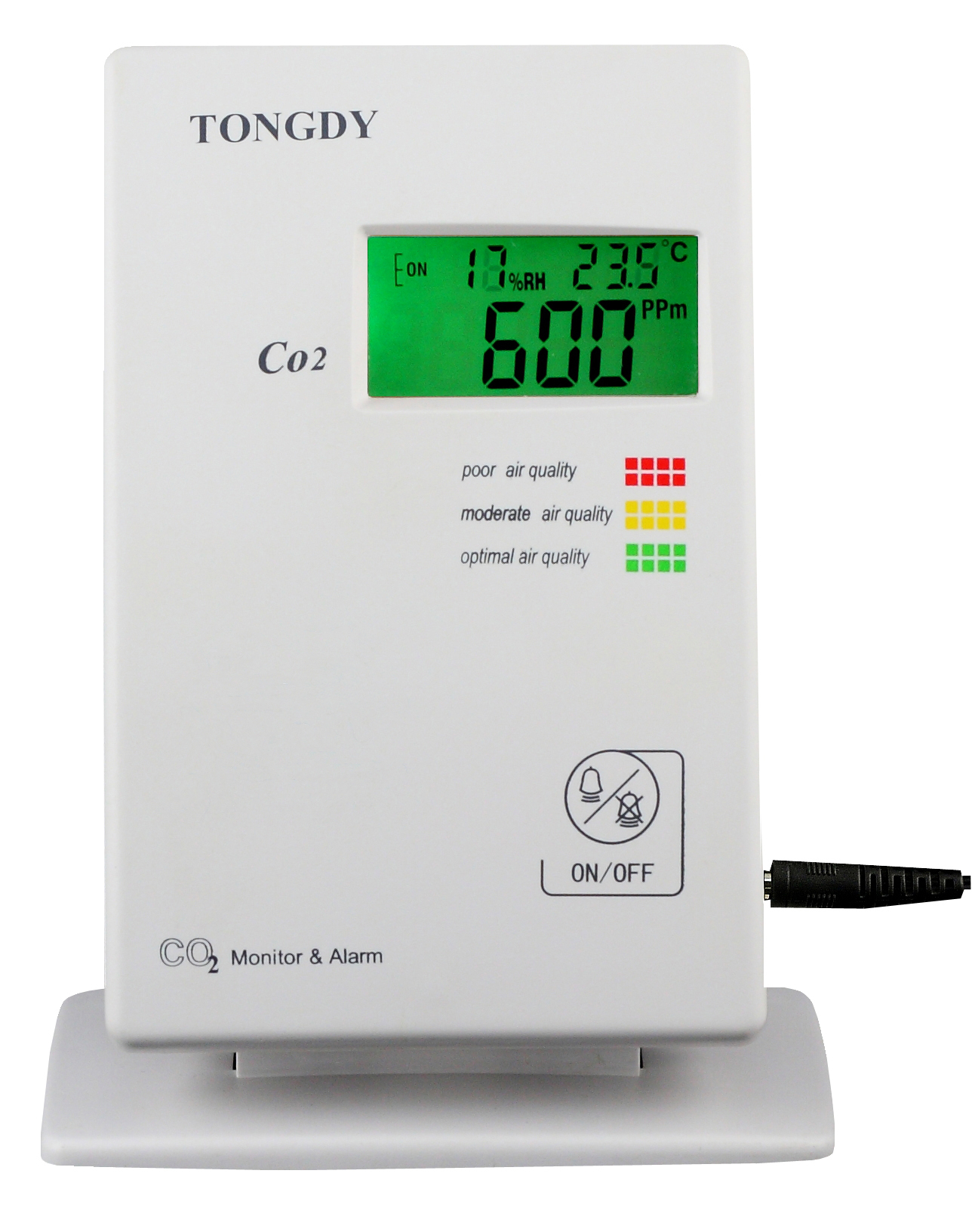

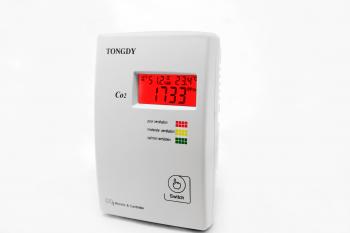

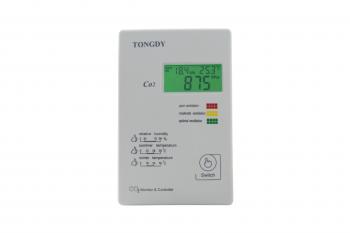

Carbon Dioxide Monitor and Alarm Model: G01- CO2- B3

สินค้า

Carbon Dioxide Monitor and Alarm Model: G01- CO2- B3

ชื่อสินค้า : Carbon Dioxide Monitor and Alarm Model: G01- CO2- B3

รหัส : Model: G01- CO2- B3

แบรนด์ : Tongdy

ไฟล์เอกสาร :

รายละเอียด :

♦ Real time monitoring room carbon dioxide

♦ NDIR infrared CO2 sensor inside with special Self Calibration. It makes the CO2 measurement more accurate and more reliable.

♦ More than 10 years lifetime of CO2 sensor

♦ Temperature and humidity monitoring

♦ Three-color (Green/Yellow/ Red) LCD backlight indicates ventilation level -optimal/moderate/poor based on the CO2 measurements

♦ Buzzer alarm available/disable selected

♦ Optional display 24h average and max. CO2

♦ Provide optional 1xrelay output to control a ventilator

♦ Provide optional Modbus RS485 communication

♦ Touch button for easy operation

♦ 24VAC/VDC or 100~240V or USB 5V power supply

♦ wall mounting or desktop placement available

♦ High quality with the excellent performance, best choice for schools and offices

♦ CE-approval

G01-CO2 monitor is used to monitor indoor CO2 concentration as well as temperature and humidity. It’s installed on the wall or on the desktop

♦ Schools, offices, hotels, meeting rooms

♦ Shops, restaurants, hospitals, theaters

♦ Air ports, train stations, other public places

♦ Apartments, houses

♦ All ventilation systems

Power supply	100~240VAC or 24VAC/VDC wire connecting USB 5V (>1A for USB adaptor) 24V with an adaptor
Consumption	3.5 W max. ; 2.5 W avg
Gas detected	Carbon Dioxide (CO2)
Sensing element	Non-Dispersive Infrared Detector (NDIR)
Accuracy@25℃(77℉)	±50ppm + 3% of reading
Stability	<2% of FS over life of sensor (15 yr typical)
Calibration interval	ABC Logic Self Calibration Algorithm
CO2 sensor life	15 years
Response Time
Signal update	Every 2 seconds
Warm up time
CO2 measuring range	0～5,000ppm
CO2 Display resolution	1ppm
3-color backlight for CO2 range	Green : 1400ppm
LCD Display	Real time CO2, Temp &RH Extra 24h average/max/min CO2 (optional)
Temperature measuring range	-20～60℃(-4～140℉)
Humidity measuring range	0～99%RH
Relay output (optional)	One relay output with rated switching current: 3A, resistance load
Operation conditions	-20~60℃(32~122℉); 0~95%RH, non condensing
Storage conditions	0~50℃(14~140℉), 5~70%RH
Dimensions/ Weight	130mm(H)×85mm(W)×36.5mm(D) / 200g
Housing and IP class	PC/ABS fireproof plastic material, protection class: IP30
Installation	Wall mounting (65mm×65mm or 2”×4”wire box) Desktop placement
Standard	CE-Approval
